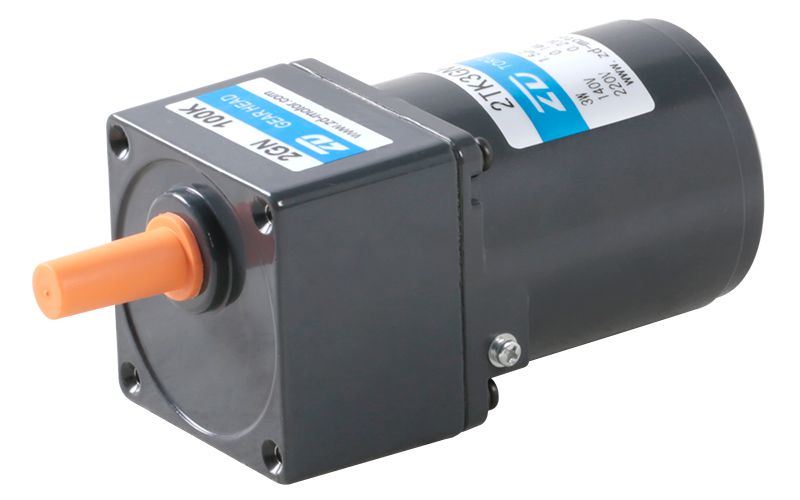

Torque Motor

Torque Motor

Request a Quote
Motor Specifications
Model Rating at Locked Rotor Voltage V Frequency Hz Starting Torque mN.m Max. Output Power W Speed at Max. Output Power r/min Torque at Max. Output Power mN.m Capacitor μF
2TK3GN-A 5 min continuous 110 50 69 3.2 750 41 7.0/250
60 25 1.3 16
5 min continuous 110 60 69 3.2 900 37 6.0/250
60 25 1.3 11
2TK3GN-C 5 min continuous 220 50 69 3.2 750 41 1.5/450
140 25 1.2 16
5 min continuous 220 60 69 3.2 900 37 1.2/450
140 25 1.2 11
3TK6GN-A 5 min continuous 110 50 134 6.0 750 80 8.0/250
60 68 2.5 36
5 min continuous 110 60 134 6.5 900 74 7.0/250
60 68 2.8 30
3TK6GN-C 5 min continuous 220 50 134 6.0 750 80 2.0/450
140 68 2.5 36
5 min continuous 220 60 134 6.5 900 74 1.5/450
140 68 2.8 30
4TK10GN-A 5 min continuous 110 50 235 10 750 127 10.0/250
60 74 3.0 46
5 min continuous 110 60 25 10 900 127 8.0/250
60 69 3.0 38
4TK10GN-C 5 min continuous 220 50 265 10 750 127 2.5/450
140 98 3.0 46
5 min continuous 220 60 225 10 900 127 2.0/450
140 90 3.0 38
5TK20GN-A 5 min continuous 110 50 363 20 750 224 15.0/250
60 137 6.0 76
5 min continuous 110 60 294 26 900 216 12.0/250
60 108 6.0 64
5TK20GN-C 5 min continuous 220 50 363 20 750 224 3.5/450
140 137 6.0 76
5 min continuous 220 60 294 26 900 216 3.0/450
140 108 6.0 64
Gear Motor-Torque TableAllowance Torque Unit: N.m
Applicable Motor Output Power (Pinion Shaft Type) Gearhead Model Gear Ratio
3W 2GN()K 3, 3.6, 5, 6, 7.5, 9, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200
2GN10XK (Intermediate Gearhead)
6W 3GN()K 3, 3.6, 5, 6, 7.5, 9, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200
3GN10XK (Intermediate Gearhead)
10W 4GN()K 3, 3.6, 5, 6, 7.5, 9, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200
4GN10XK (Intermediate Gearhead)
20W 5GN()K 3, 3.6, 5, 6, 7.5, 9, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200
5GN10XK (Intermediate Gearhead)

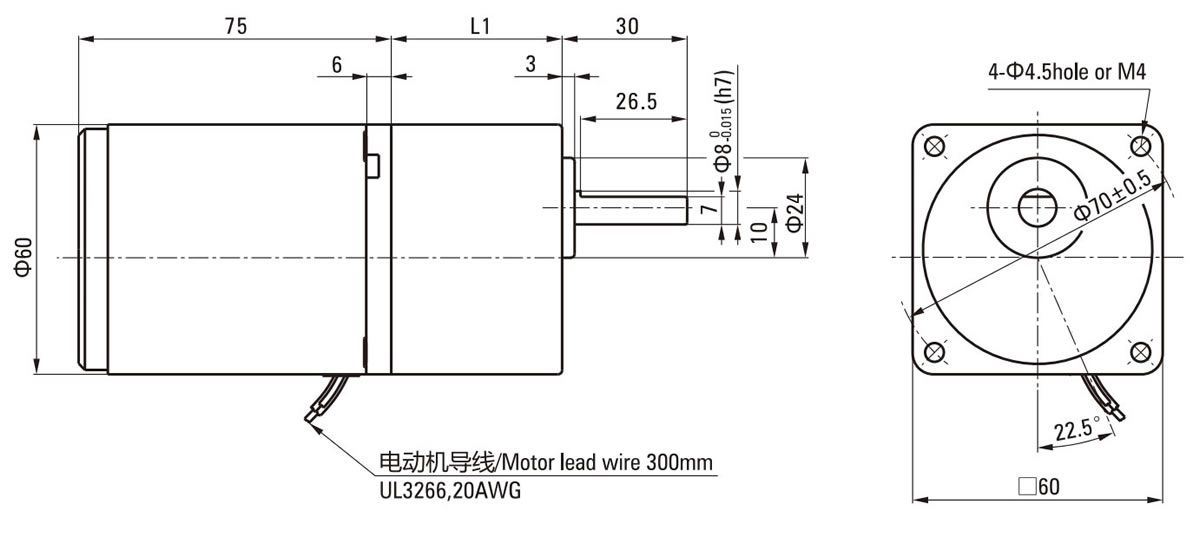

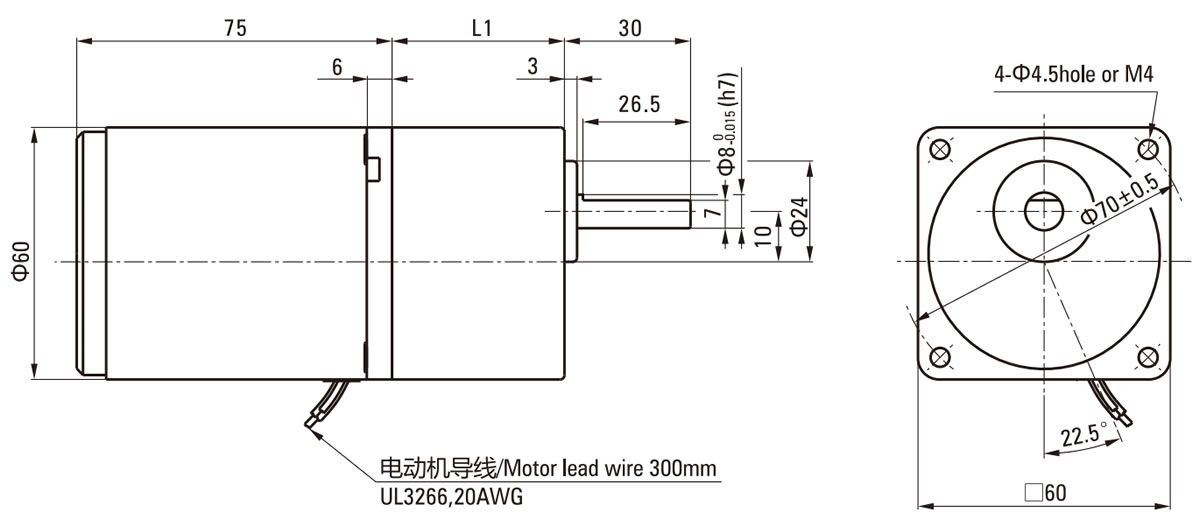

60mm 3W Torque Motor
PDF Download
60mm 3W Torque Motor
L1=41.5
70mm 6W Torque Motor
PDF Download
70mm 6W Torque Motor
L1=42mm
80mm 10W Torque Motor
PDF Download
80mm 10W Torque Motor
L1=43.5mm
90mm 20W Torque Motor
PDF Download
90mm 20W Torque Motor
L1=60mm
Applications
  • Food and Beverage Processing Sausage grillers, milk tea sealing machines, ice makers, automatic tea-roasting machines, meat grinders.
  • Packaging Equipment Carton sealers, kraft paper packaging machines.
  • Semiconductor Manufacturing: Precision handling and assembly equipment.
  • Battery Manufacturing Lithium battery processing systems.
  • Intralogistics Conveyor systems for logistics and warehousing.
  • Printing and Binding Conical plastic cup printers, industrial printers, paper mounting machines.
  • Woodworking Machinery Edge banding machines, sawing equipment, automated woodworking production lines.
  • Textile Industry Textile production equipment.
  • Livestock Management Manure removal systems, pig farming equipment, feeding systems.
  • Inspection Systems Security inspection machines.
  • Dust Removal Systems Industrial dust removal equipment.
  • Injection Molding Auxiliary systems for injection molding machines.
  • Access Control Systems Speed gates, channel gates.
Related Products
Induction Motor Induction Motor
Speed Control Motor Speed Control Motor

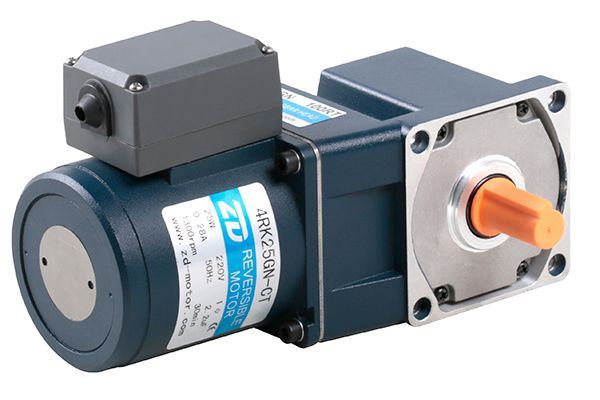

Reversible Motor Reversible Motor
