Zhongda AC gear motors seamlessly integrate a precision miniature gearbox with a compact electric motor. This creates an efficient reduction drive mechanism. The integrated gearbox can be categorized into standard gearboxes, right-angle gearboxes, and intermediate gearboxes. While the standard and right-angle variants are directly connected to the motor, the intermediate gearbox is specially designed to achieve reduction ratios beyond the capabilities of standard gearboxes. Specifically, when a reduction ratio surpasses 200:1, an intermediate gearbox should be paired with a standard or worm gearbox. Notably, the intermediate gearbox doesn't change the torque.

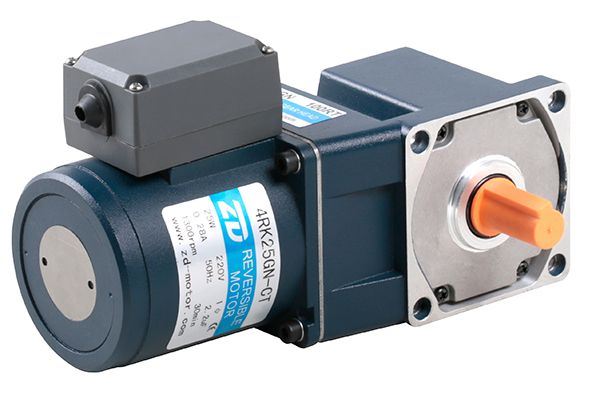

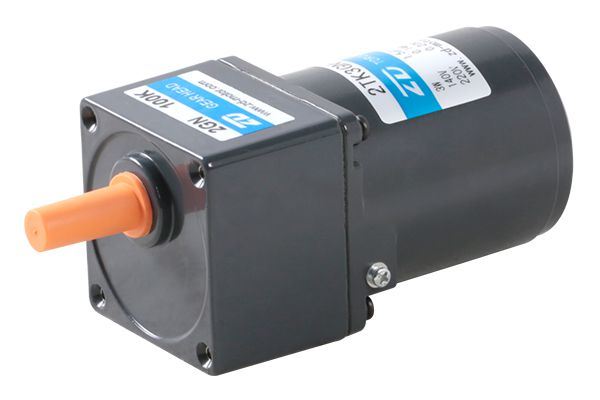

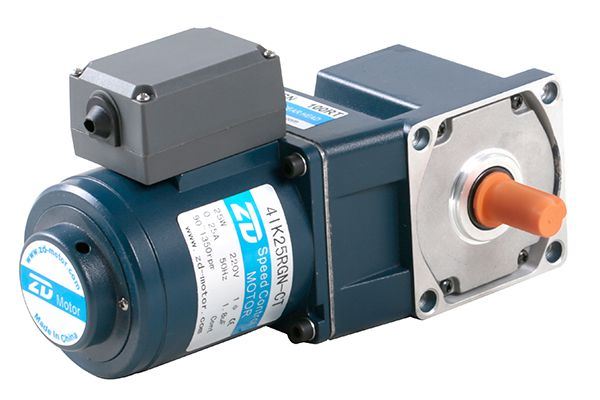

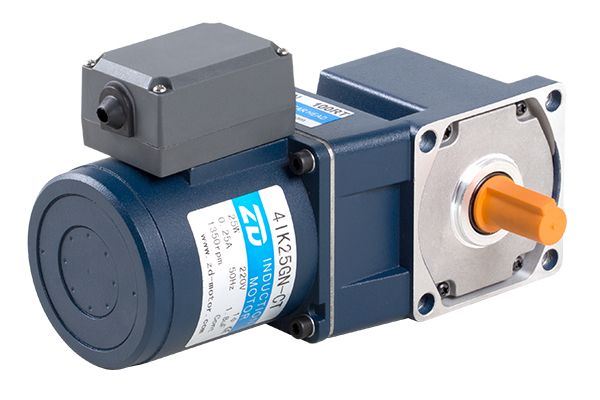

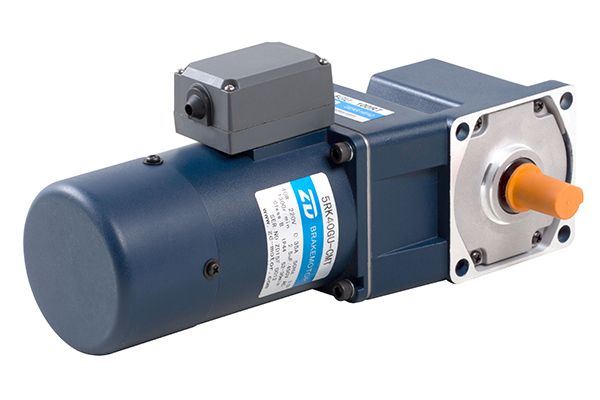

Our AC gear motor range includes induction motors, speed control motors, reversible motors, brake motors, and torque motors. They are extensively applied in sectors such as electronics, barrier systems, entertainment, and medical equipment. Known for the high transmission ratios, low noise, and prolonged lifespan, our AC gear motors come in various frame sizes: 60, 70, 80, 90, and 104mm, with power ratings from 6W to 200W (6W, 10W, 15W, 25W, 40W, 60W, 90W, 120W, 150W, 180W, 200W). They are compatible with both single-phase and three-phase AC power and offer reduction ratios from 3~200K.

In terms of standard gear reduction ratios, Zhongda offers ratios from 3K up to 750K. Incorporating an intermediate gearbox can amplify this ratio. For instance, pairing a 200K output gearbox with an 10K intermediate gearbox yields a 2000K ratio. Right-angle gearboxes are also compatible with our products, where the input and output shafts stand perpendicular. Our high precision helical gears are crafted with advanced tools, with concentricity and positional precision reach up to IT6 level. Our right-angle gearboxes employ a Gleason bevel gear structure, providing high transmission efficiency and substantial load capacity, and meanwhile requiring minimal maintenance.
