Drum Motor

Drum motor is a drive unit that combines motor with gear box enclosed within an outer shell.

Drum motor is an innovative drive solution where the electric motor and the reducer are housed within the drum. This design primarily serves stationary and portable belt conveyors, replacing the traditional separated drive devices where the electric motor and reducer are outside the drum.

Zhongda drum motors have many advantages:
  • The compact structure ensures efficient transmission and low noise.
  • With an extended lifespan, our drum motor guarantees smooth operation, reliable performance, and superior sealing.
  • This design not only occupies minimal space but also simplifies installation.
  • Our drum motors are well-suited for various challenging conditions and find applications in security screening equipment, logistics machinery, and assembly lines.
Specifications
  • Motor Types: AC motor, Brushless motor.
  • Outer Tube Diameters: 50, 60, 76, 89, 113, 138, 165.
  • Power Range: 20~2200W.
  • Input Power: Single-phase AC, Three-phase AC, Low-voltage DC.
  • Linear Speed: 2.035-182.385m/min.
Features
  • Standard drum is made of low-carbon steel with a zinc-plated surface, and food-grade drum is constructed from 304 stainless steel.
  • The surface of the standard drum undergoes anti-slip embossing.
  • Precision gears made of high alloy steel ensure ultra-low noise during transmission with cast-aluminum gearboxes.
  • Heavy-duty drum motors utilize planetary gears, designed for heavy loads, ensuring high-torque transmission.
  • The shaft end boasts a double seal design. Drum motors are rated with high sealing protection.
  • Every drum motor is pre-filled with standard oil before shipment.
  • Oil change recommended at every 5000 hours.
  • Belt speed and drum length can be customized according to client requirements. Zhongda offers various non-standard drum motors and non-motorized drums upon request.

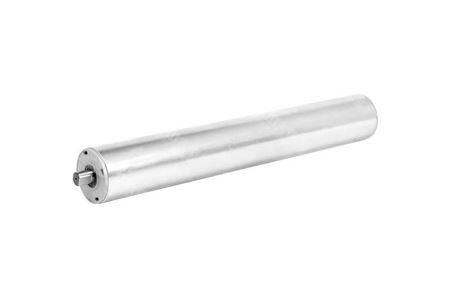

DC Drum Motor
BL50 DC Drum Motor BL50 DC Drum Motor
BL60 DC Drum Motor BL60 DC Drum Motor
BL80 DC Drum Motor BL80 DC Drum Motor

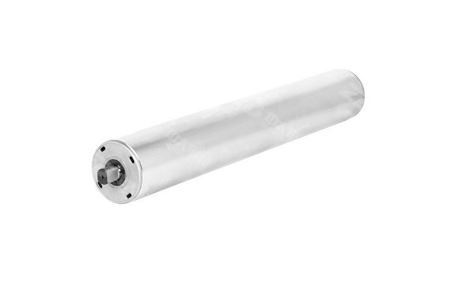

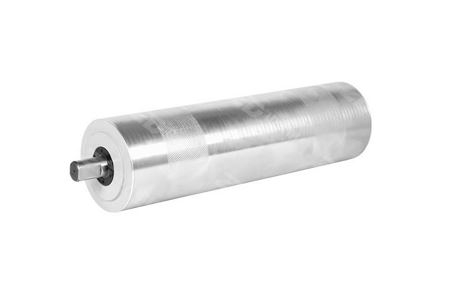

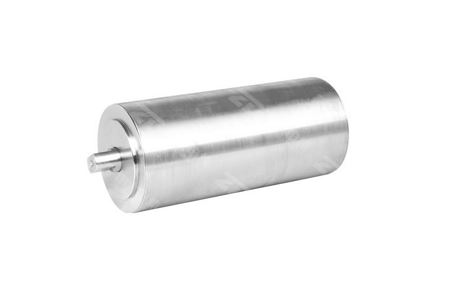

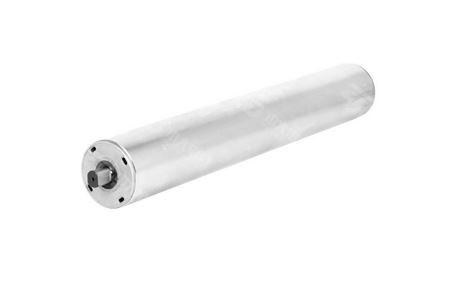

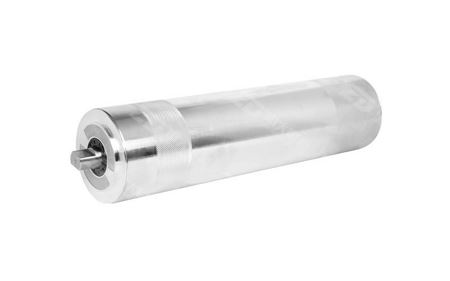

AC Drum Motor
DM60 AC Drum Motor DM60 AC Drum Motor
DM70 AC Drum Motor DM70 AC Drum Motor
DM80 AC Drum Motor DM80 AC Drum Motor
DM113 AC Drum Motor DM113 AC Drum Motor
DM138 AC Drum Motor DM138 AC Drum Motor
DM165 AC Drum Motor DM165 AC Drum Motor
Manufacturing
Manufacturing
Manufacturing
Manufacturing

The company continually invests in the introduction of internationally advanced production and testing equipment. Zhongda has established a comprehensive manufacturing system, comprising the following components:

Gear Processing Equipment primarily composed of Japan's Mitsubishi and Germany's KAPP.
Housing Processing Equipment mainly from Japan's MAKINO and Mazak.
Motor Processing Equipment featuring Japan's AIDA and NITTOKU.
Product Inspection Equipment including Germany's Zeiss and Klingelnberg.
