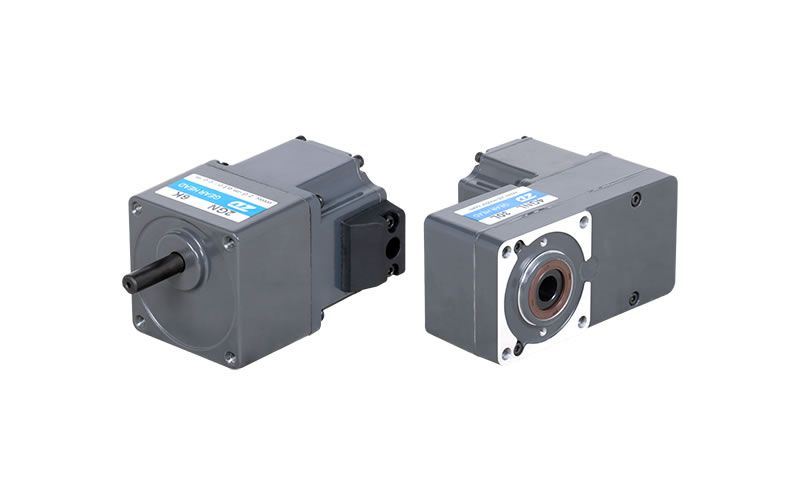

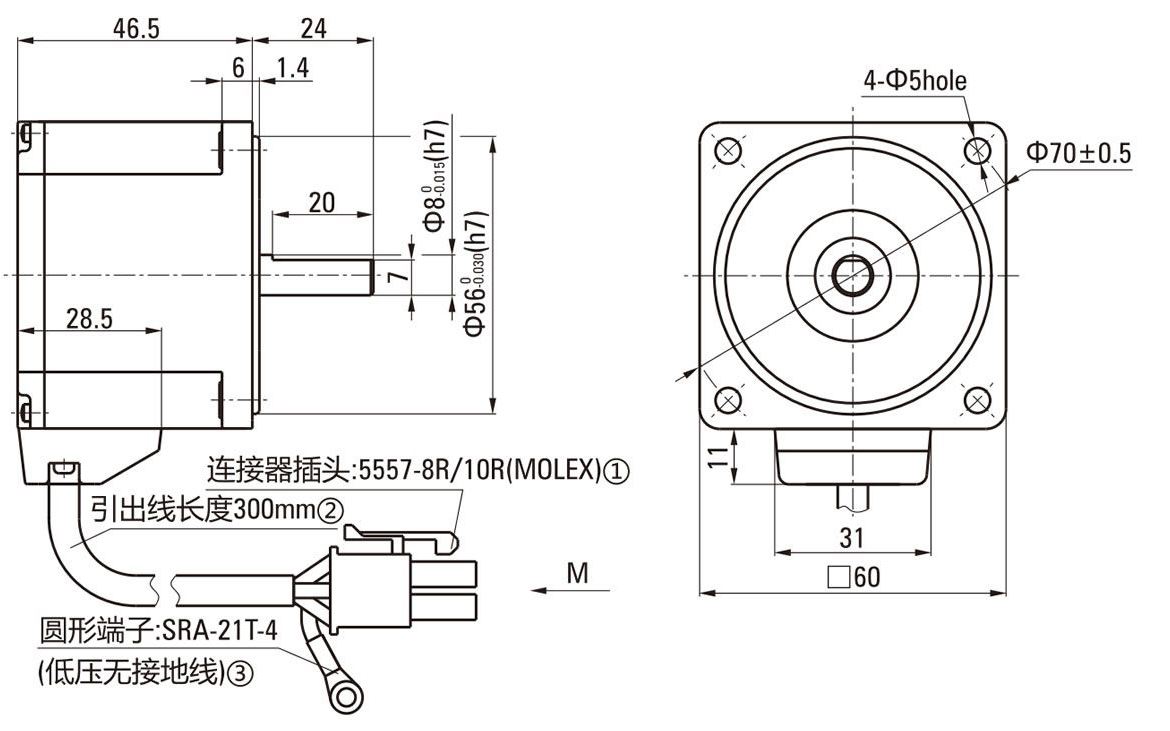

Brushless DC Round Shaft Gearmotor

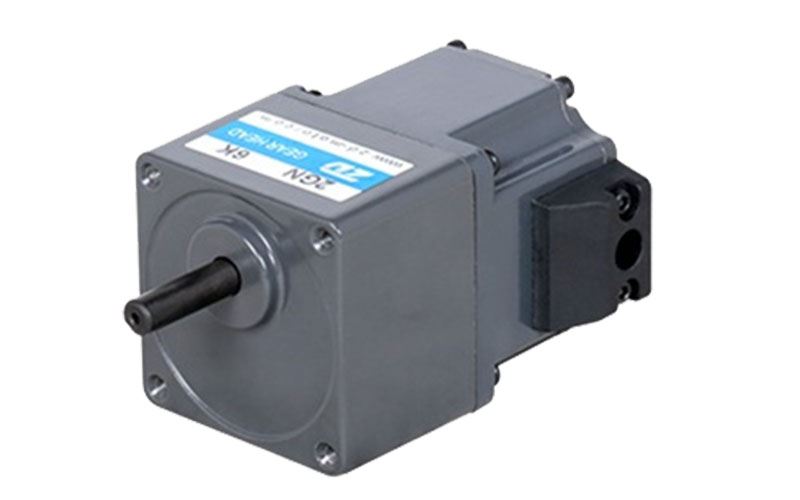

60mm 25W Brushless DC Round Shaft Gearmotor

60mm 25W Brushless DC Round Shaft Gearmotor

Request a Quote PDF Download
Motor Specifications

25W (smooth operation at 24VDC/36VDC/48VDC)

Rated power (Continuous) W 25(15W/25W)
Rated Speed r/min 3000
Rated Torque N.m 0.08
Max. Instantaneous Torque N.m 0.12
Rotor Inertia Moment J: X10⁴kg.m² 0.042
Speed Control Range RPM 200～3000
Speed Change Rate Load Below ±1%: condition 0~rated torque, rated speed, rated voltage, room temperature
Voltage Below ±1%: condition rated voltage ±10%, rated speed, rated load, room temperature
Temperature Below ±1%: condition ambient temperature -10℃~+40℃, rated speed, rated load, rated voltage
Power Input Rated Voltage Single phase 110V Single phase 220V 24VDC (Optional 36VDC/48VDC)
Voltage Tolerance Range ±10%
Frequency 50/60 /
Frequency Tolerance Range ±5%
Rated Input Current 1.0 0.6 1.7
Max. Instantaneous Input Current A 2.0 1.2 2.6
60mm 25W Brushless DC Parallel Shaft Gearmotor

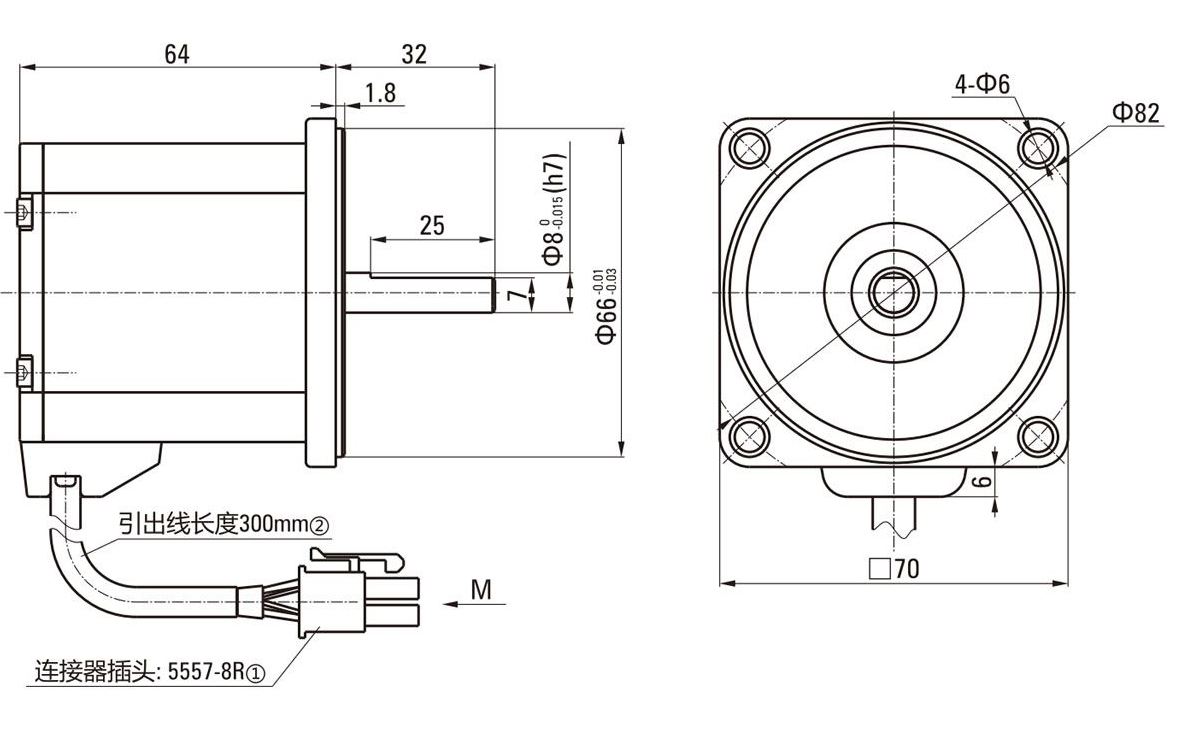

70mm 40W Brushless DC Round Shaft Gearmotor

70mm 40W Brushless DC Round Shaft Gearmotor

Request a Quote PDF Download
Motor Specifications

40W (smooth operation at 24VDC/36VDC/48VDC)

Rated Power (Continuous) W 40(40W)
Rated Speed r/min 3000
Rated Torque N.m 0.127
Max. Instantaneous Torque N.m 0.191
Rotor Inertia Moment J: X10⁴kg.m² 0.082
Speed Control Range RPM 200～3000
 Speed Change Rate Load Below ±1%: condition 0~rated torque, rated speed, rated voltage, room temperature
Voltage Below ±1%: condition rated voltage ±10%, rated speed, rated load, room temperature
Temperature Below ±1%: condition ambient temperature -10℃~+40℃, rated speed, rated load, rated voltage
Power Input Rated Voltage 24VDC (Optional 36VDC/48VDC)
Voltage Tolerance Range ±10%
Frequency 50/60
Frequency Tolerance Range ±5%
Rated Input Current 1.7 1.0 3.7
Max. Instantaneous Input Current A 3.3 1.9 5.6
70mm 40W Brushless DC Parallel Shaft Gearmotor

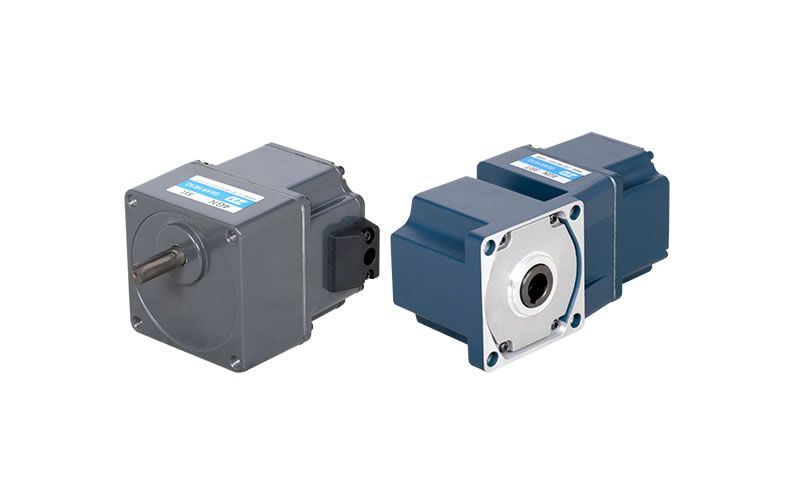

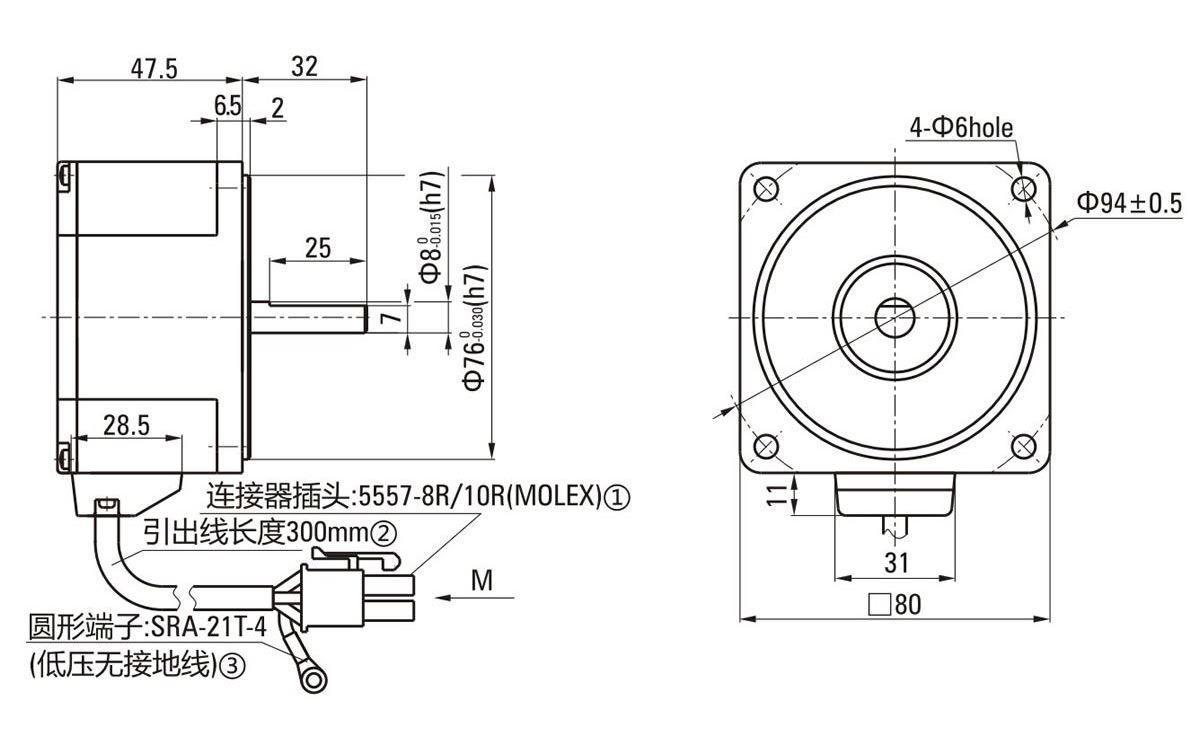

80mm 60W Brushless DC Round Shaft Gearmotor

80mm 60W Brushless DC Round Shaft Gearmotor

Request a Quote PDF Download
Motor Specifications

60W (smooth operation at 24VDC/36VDC/48VDC)

Rated Power (Continuous) W 60(40W/60W)
Rated Speed r/min 3000
Rated Torque N.m 0.191
Max. Instantaneous Torque N.m 0.287
Rotor Inertia Moment J: X10⁴kg.m² 0.082
Speed Control Range RPM 200～3000
 Speed Change Rate Load Below ±1%: condition 0~rated torque, rated speed, rated voltage, room temperature
Voltage Below ±1%: condition rated voltage ±10%, rated speed, rated load, room temperature
Temperature Below ±1%: condition ambient temperature -10℃~+40℃, rated speed, rated load, rated voltage
Power Input Rated Voltage Single phase 110V Single phase 220V 24VDC (Optional 36VDC/48VDC)
Voltage Tolerance Range ±10%
Frequency 50/60
Frequency Tolerance Range ±5%
Rated Input Current 1.7 1.0 3.7
Max. Instantaneous Input Current A 3.3 1.9 5.6
80mm 60W Brushless DC Parallel Shaft Gearmotor

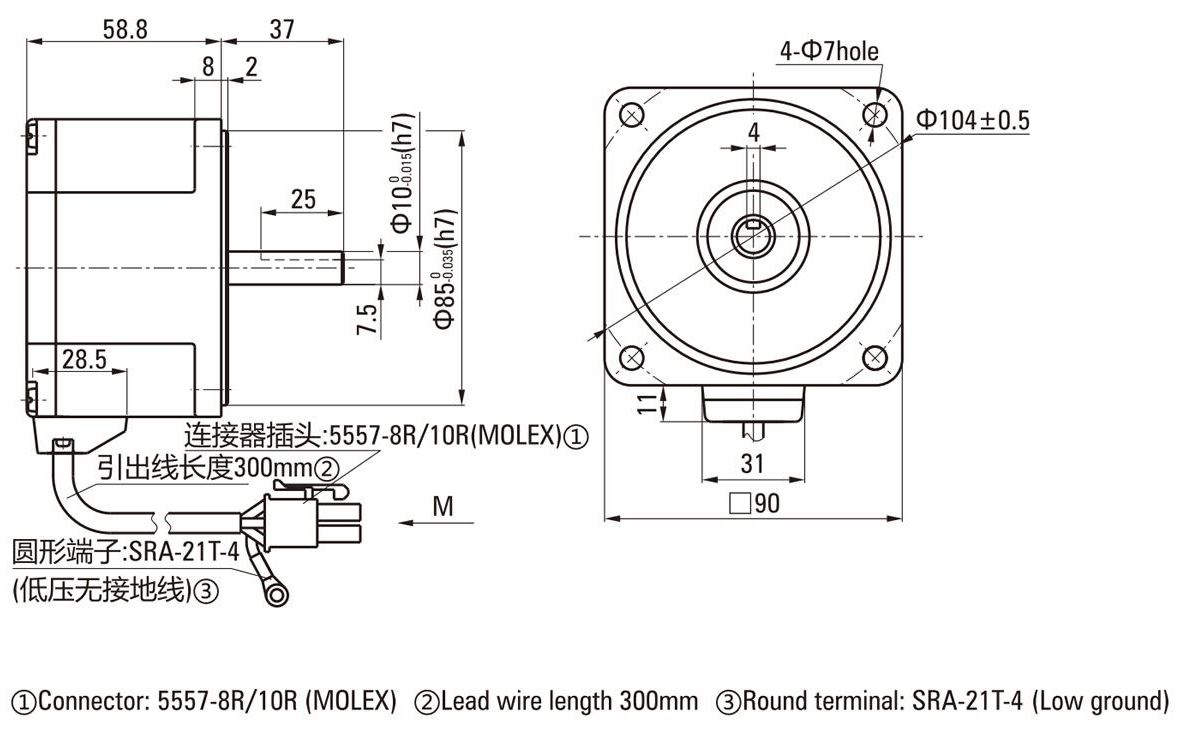

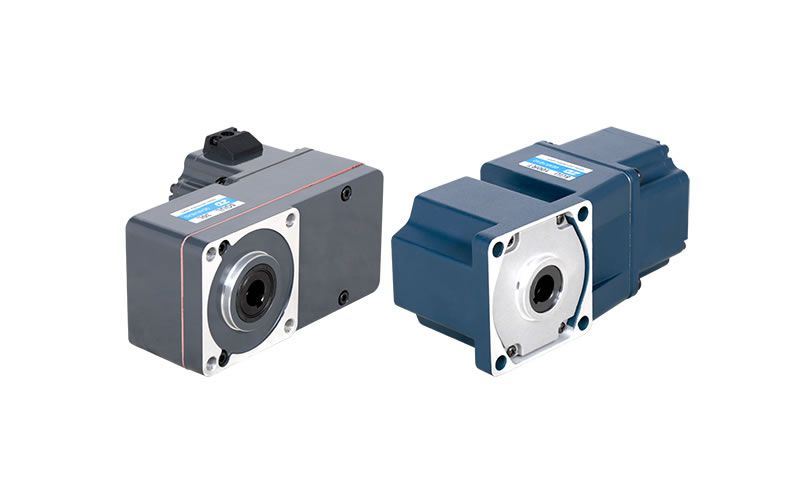

90mm 60W-GN Brushless DC Round Shaft Gearmotor

90mm 60W-GN Brushless DC Round Shaft Gearmotor

Request a Quote PDF Download
Motor Specifications

60W(smooth operation at 24VDC/36VDC/48VDC)

Rated Power (Continuous) W 60(40W/60W)
Rated Speed r/min 3000
Rated Torque N.m 0.191
Max. Instantaneous Torque N.m 0.287
Rotor Inertia Moment J: X10⁴kg.m² 0.082
Speed Control Range RPM 200～3000
Speed Change Rate Load Below ±1%: condition 0~rated torque, rated speed, rated voltage, room temperature
Voltage Below ±1%: condition rated voltage ±10%, rated speed, rated load, room temperature
Temperature Below ±1%: condition ambient temperature -10℃~+40℃, rated speed, rated load, rated voltage
Power Input Rated Voltage Single phase 110V Single phase 220V 24VDC (Optional 36VDC/48VDC)
Voltage Tolerance Range ±10%
90mm 60W-GN Brushless DC Parallel Shaft Gearmotor

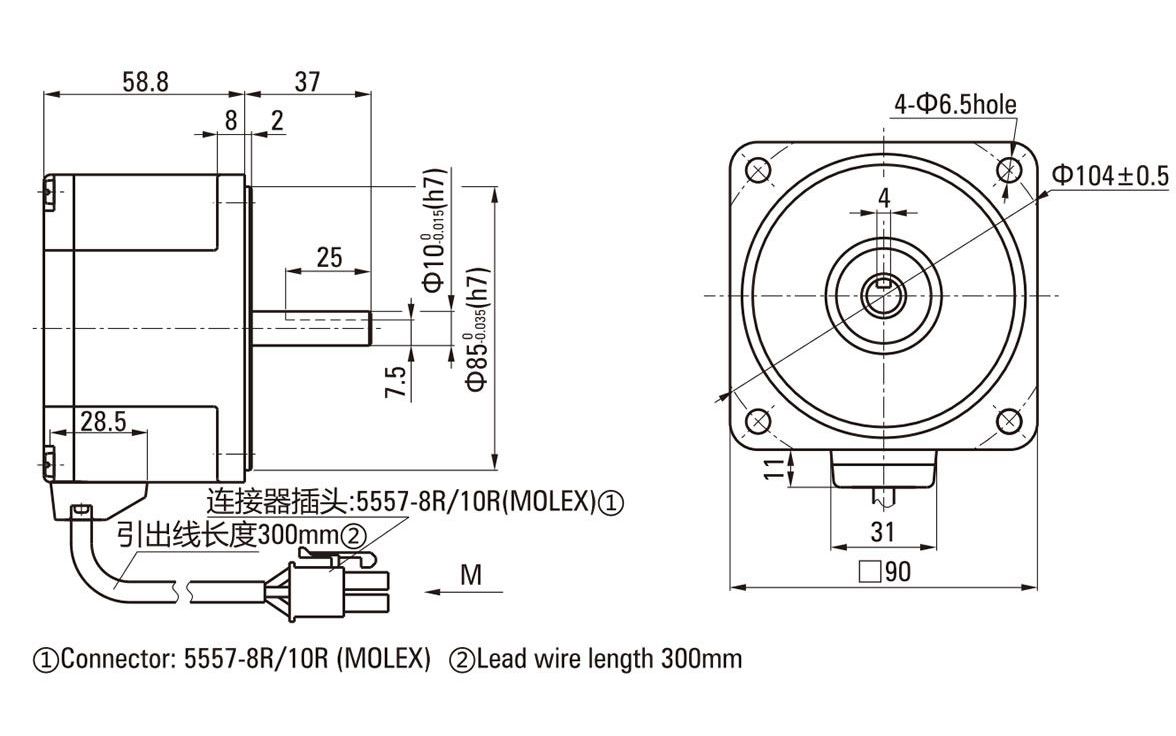

90mm 120W Brushless DC Round Shaft Gearmotor

90mm 120W Brushless DC Round Shaft Gearmotor

Request a Quote PDF Download
Motor Specifications
Rated Power (Continuous) W 120(60W/90W/120W)
Rated Speed r/min 3000
Rated Torque N.m 0.382
Max. Instantaneous Torque N.m 0.573
Rotor Inertia Moment J: X10⁴kg.m² 0.250
Speed Control Range RPM 200～3000
Speed Change Rate Load Below ±1%: condition 0~rated torque, rated speed, rated voltage, room temperature
Voltage Below ±1%: condition rated voltage ±10%, rated speed, rated load, room temperature
Temperature Below ±1%: condition ambient temperature -10℃~+40℃, rated speed, rated load, rated voltage
Power Input Rated Voltage Single phase 110V Single phase 220V 24VDC (Optional 36VDC/48VDC)
Voltage Tolerance Range ±10%
Frequency 50/60
Frequency Tolerance Range ±5%
Rated Input Current 3.5 2.0 6.8
Max. Instantaneous Input Current A 7.0 4.5 13.0

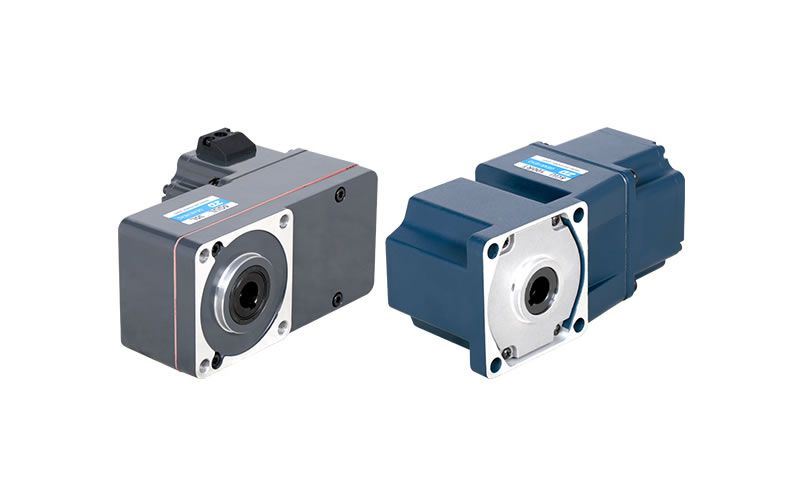

90mm 120W Brushless DC Parallel Shaft Gearmotor

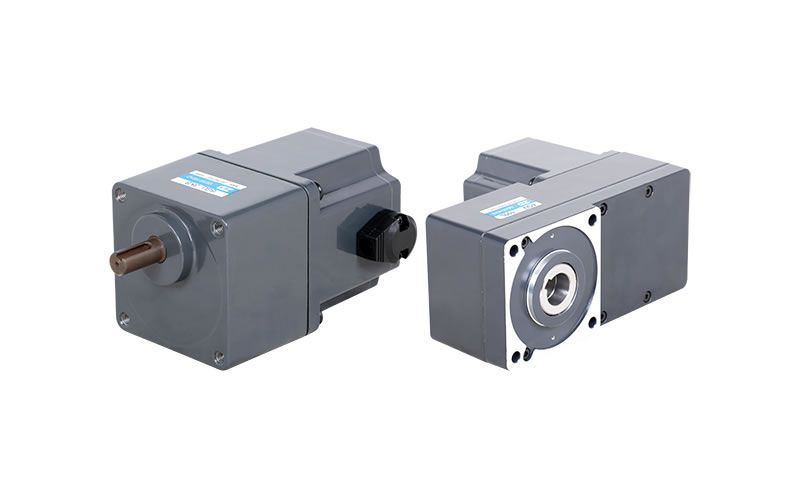

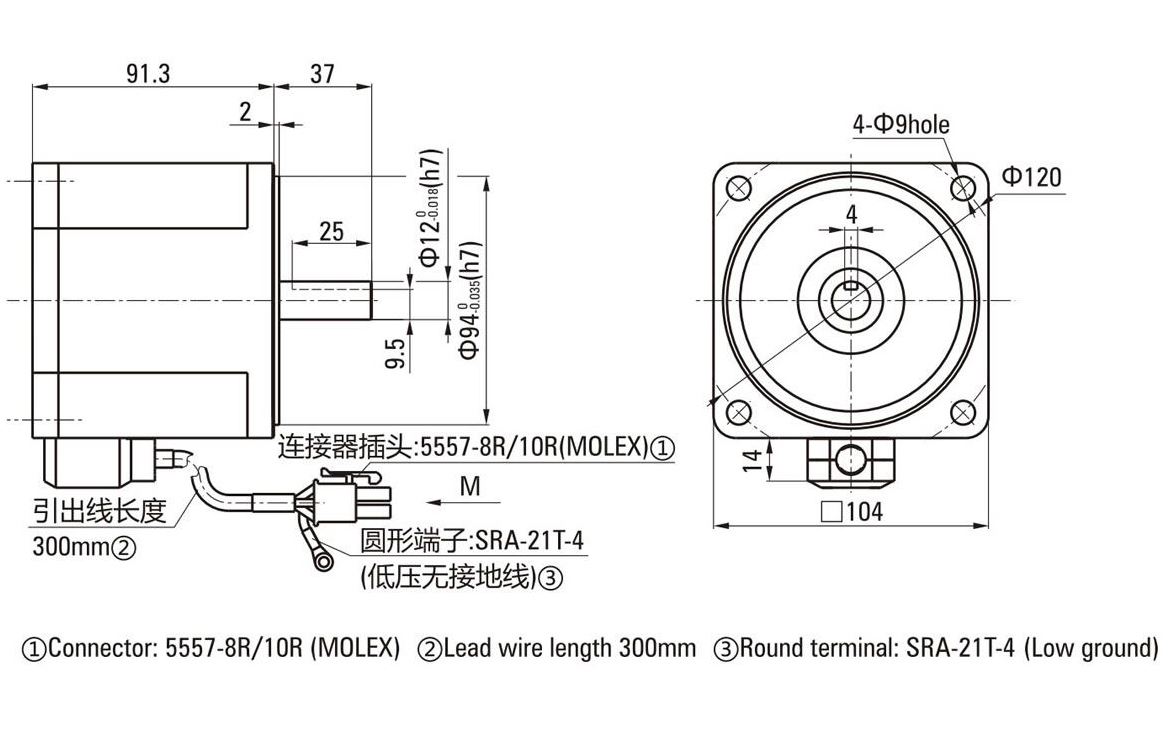

104mm 200W Brushless DC Round Shaft Gearmotor

104mm 200W Brushless DC Round Shaft Gearmotor

Request a Quote PDF Download
Motor Specifications
Rated Power (Continuous) W 200(200W/400W)
Rated Speed r/min 3000
Rated Torque N.m 0.636
Max. Instantaneous Torque N.m 0.955
Rotor Inertia Moment J: X10-4kg.2 0.460
Speed Control Range RPM 200-2500 RPM at high voltage (200-3000RPM at low voltage)
Speed Change Rate Load Below ±1%: condition 0~rated torque, rated speed, rated voltage, room temperature
Voltage Below ±1%: condition rated voltage ±10%, rated speed, rated load, room temperature
Temperature Below ±1%: condition ambient temperature -10℃~+40℃, rated speed, rated load, rated voltage
Power Input Rated Voltage Single phase 110V Single phase 220V 24VDC (Optional 36VDC/48VDC)
Voltage Tolerance Range ±10%
Frequency 50/60
Frequency Tolerance Range ±5%
Rated Input Current 4.7 2.4 7.5
Max. Instantaneous Input Current A 9.0 4.8 11.5
104mm 200W Brushless DC Parallel Shaft Gearmotor
Applications
  • Packaging Industry Food and pharmaceutical packaging machines.
  • Mobility Solutions Stair-climbing transporters, electric wheelchairs.
  • Cleaning Equipment Autonomous sweeping robots, floor scrubbers.
  • Agricultural Logistics Livestock and poultry transport vehicles.
  • Renewable Energy Solar panel rotation mechanisms, photovoltaic cleaning robots.
  • Automation Conveyor systems for photovoltaic panels, automated production lines, custom automation systems.
  • Industrial Tools Rolling presses, lawn mowers.
  • Access Control Channel gates.
