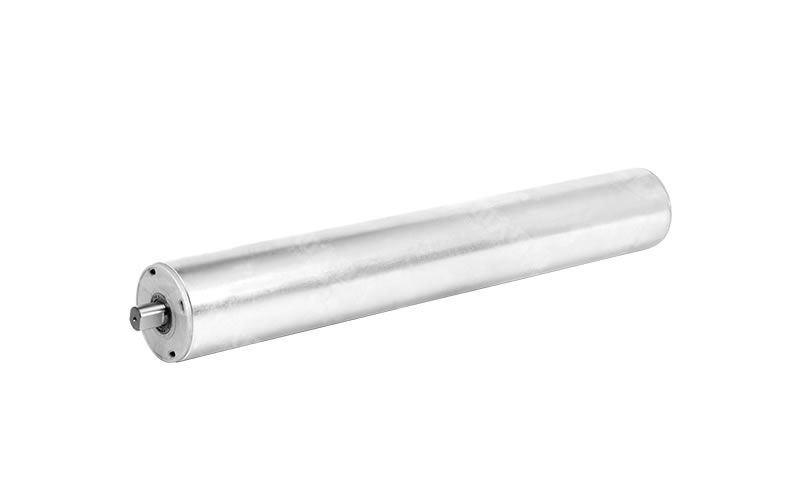

DM80 AC Drum Motor

DM80 AC Drum Motor

Request a Quote PDF Download
Specifications
Rated Power
W 		Number of Stage Gear Box Series Gear Ratio Max. Speed m/min Rated Speed RPM Rated Torque Nm Traction N Length mm
0.09 2 1 3.6500 175.370 684.9 1.10 27 350
5.3600 119.422 466.4 1.60 40 350
6.5500 97.725 381.7 1.90 49 350
8.6300 74.171 289.7 2.60 64 350
2 13.530 47.310 184.8 3.60 91 380
18.920 33.832 132.1 5.10 127 380
24.650 25.968 101.4 6.60 165 380
28.050 22.820 89.10 7.50 188 380
33.920 18.871 73.70 9.10 227 380
44.690 14.323 55.90 12.0 299 380
58.220 10.994 42.90 15.6 390 380
3 67.080 9.542 37.30 16.2 405 400
81.110 7.892 30.80 19.6 489 400
91.360 7.006 27.40 22.0 551 400
102.88 6.222 24.30 24.8 621 400
118.98 5.380 21.00 28.7 718 400
127.74 5.011 19.60 30.8 771 400
145.36 4.404 17.20 35.1 877 400
165.64 3.864 15.10 40.0 999 400
191.56 3.342 13.10 46.2 1156 400
231.61 2.764 10.80 55.9 1397 400
0.12 2 1 3.6500 175.370 684.9 1.40 36 350
5.3600 119.422 466.4 2.10 53 350
6.5500 97.725 381.7 2.60 65 350
8.6300 74.171 289.7 3.40 86 350
2 13.530 47.310 184.8 4.80 121 380
18.920 33.832 132.1 6.80 169 380
24.650 25.968 101.4 8.80 220 380
28.050 22.820 89.10 10.0 250 380
33.920 18.871 73.70 12.1 303 380
44.690 14.323 55.90 16.0 399 380
58.220 10.994 42.90 20.8 520 380
3 67.080 9.542 37.30 21.6 540 400
81.110 7.892 30.80 26.1 652 400
91.360 7.006 27.40 29.4 735 400
102.88 6.222 24.30 33.1 828 400
118.98 5.380 21.00 38.3 957 400
127.74 5.011 19.60 41.1 1028 400
145.36 4.404 17.20 46.8 1169 400
165.64 3.864 15.10 53.3 1332 400
191.56 3.342 13.10 61.6 1541 400
231.61 2.764 10.80 74.5 1863 400
Specifications
Applications
  • Inspection Systems Security inspection conveyors.
  • Conveyor Systems Roller conveyors, automated production line rollers.
  • Automation Industry Belt conveyors for injection molding, weighing conveyors, AGV roller conveyors, tire conveyors, fully automated production lines.
  • Food Industry Grain conveyors, pasta processing equipment, automated vegetable washing systems.
  • Logistics Logistics sorting and conveyor lines.
  • Healthcare Therapy beds.
