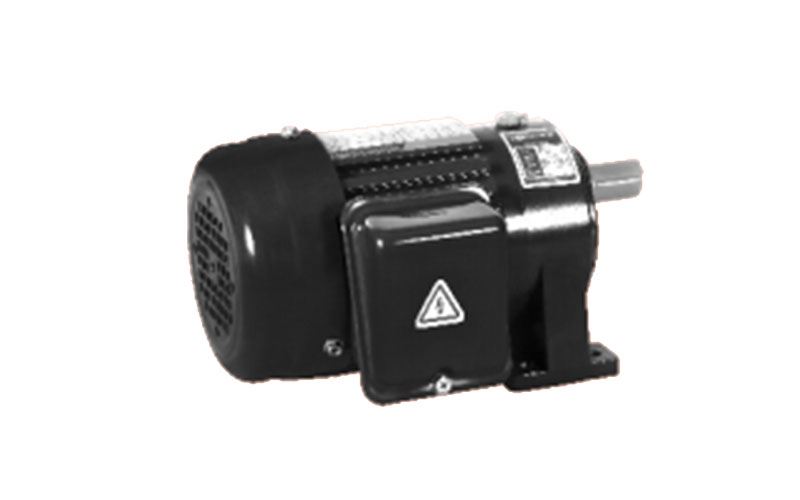

Small AC Gear Motor, Single Phase

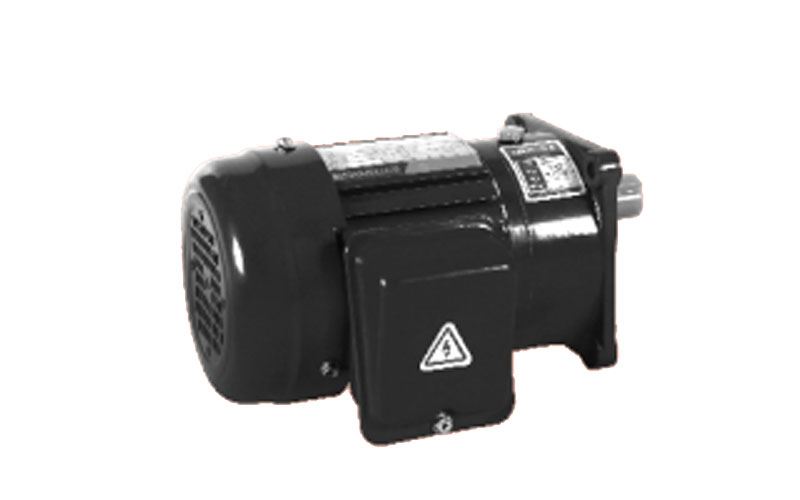

100W/200W Small AC Gear Motor

Request a Quote PDF Download

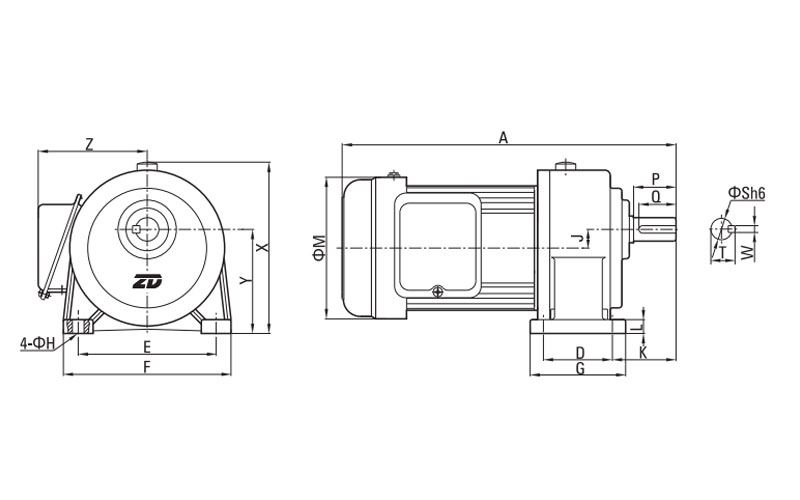

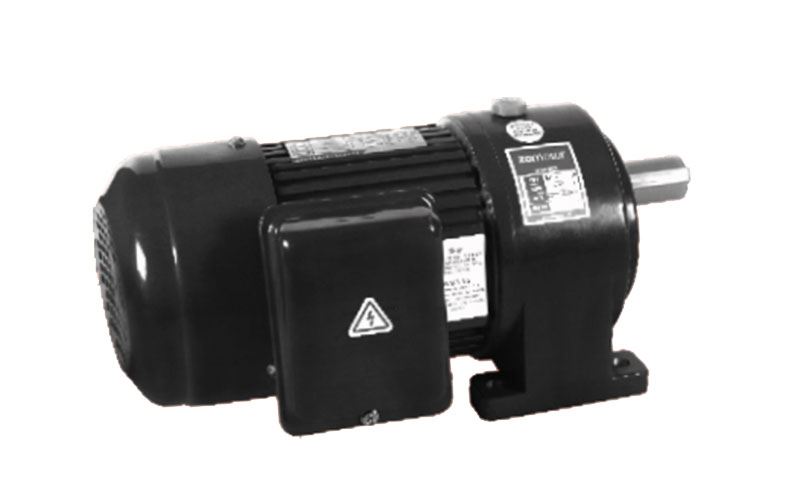

Horizontal

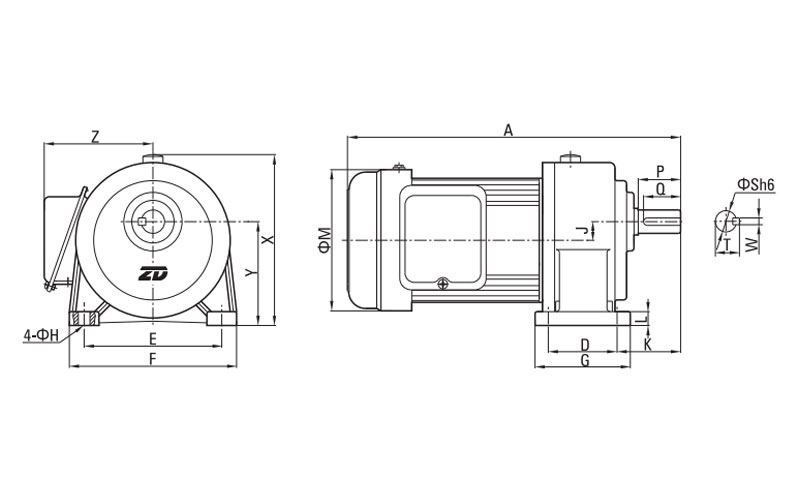

100W/200W Small AC Gear Motor
100W/200W Small AC Gear Motor 100W/200W Small AC Gear Motor

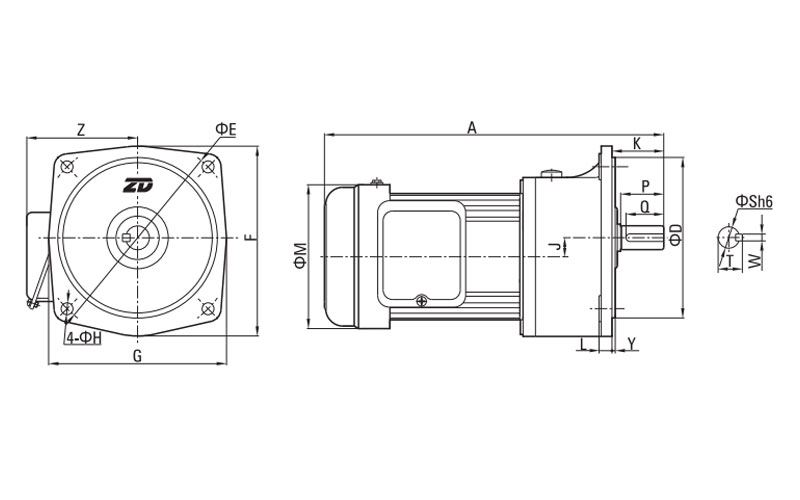

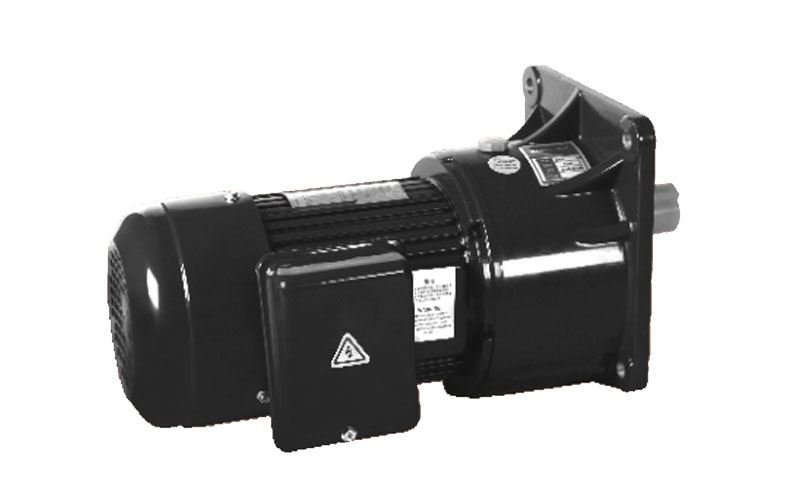

Vertical

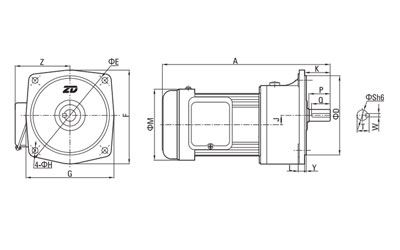

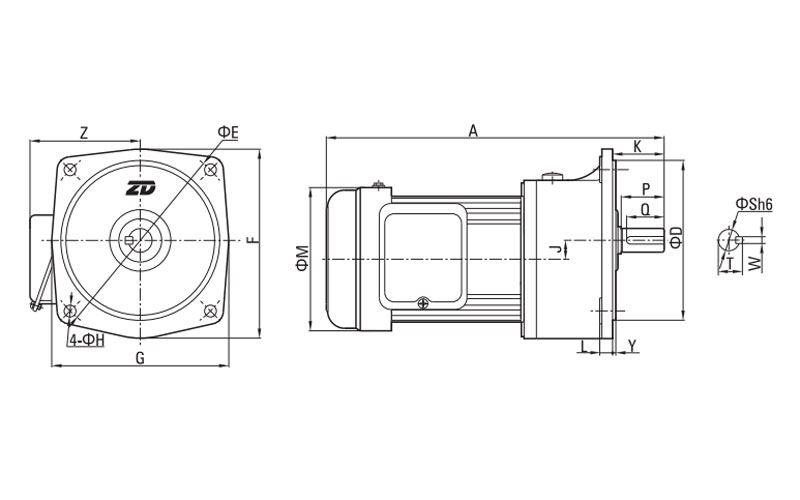

100W/200W Small AC Gear Motor
100W/200W Small AC Gear Motor 100W/200W Small AC Gear Motor
Specifications
Unit: mm
Power Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
100W 1/8HP 3-50 (Standard Type) 250 40(50) 110(140) 135(120) 65(120) 9 16 50(40) 10.5(12) 133 138(/) 88.5(2) 105 18 30 27 5 20.2 5.7
60-200 (Light Duty Type) 250 40(50) 110(140) 135(120) 65(120) 9 16 50(40) 10.5(12) 133 138(/) 88.5(2) 105 18 30 27 5 20.2 5.7
200W 1/4HP 3-10 (Standard Type) 285 40(50) 110(140) 135(120) 65(120 9 16 50(40) 10.5(12) 133 138(/) 88.5(2) 105 18 30 27 5 20.2 7.0
15-90 (Light Duty Type) 285 40(50) 110(140) 135(120) 65(120) 9 16 50(40) 10.5(12 133 138(/) 88.5(2) 105 18 30 27 5 20.2 7.0

※Tabulation "()" denote vertical box dimension

100W/750W Small AC Gear Motor

Request a Quote PDF Download

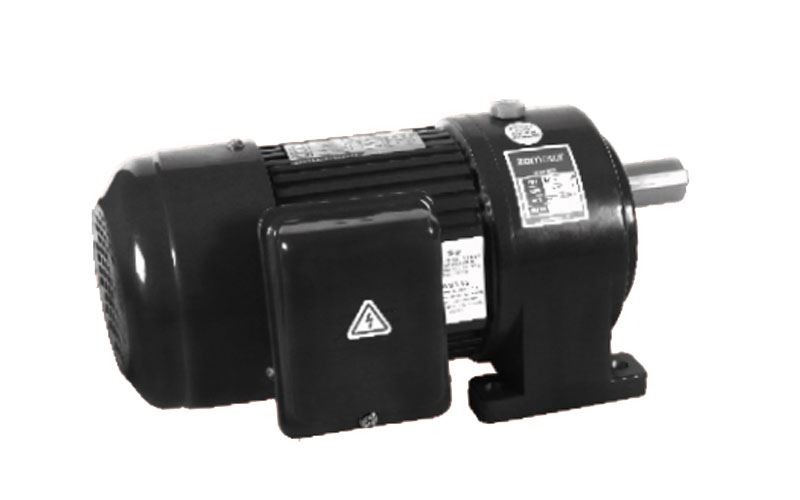

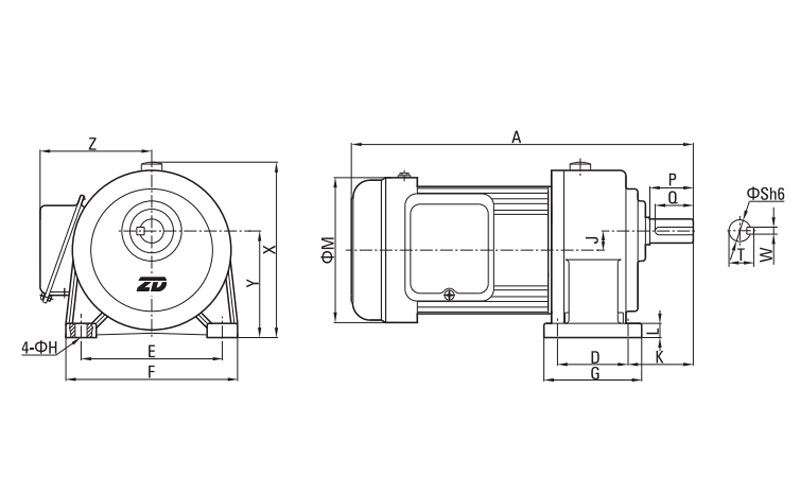

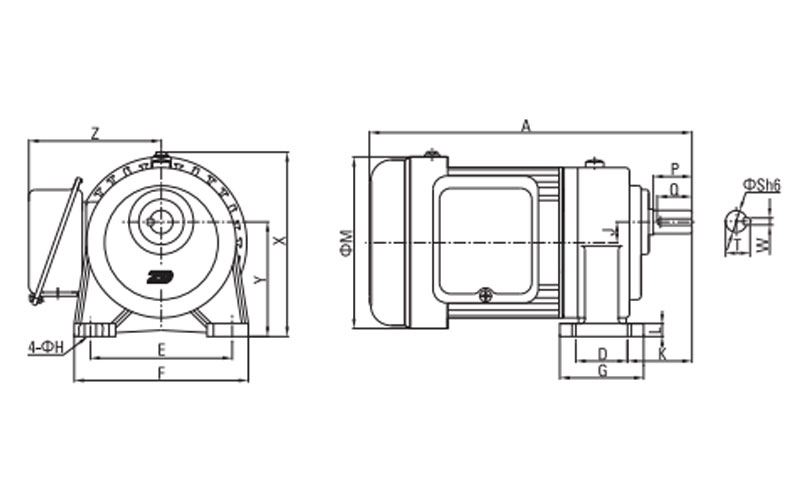

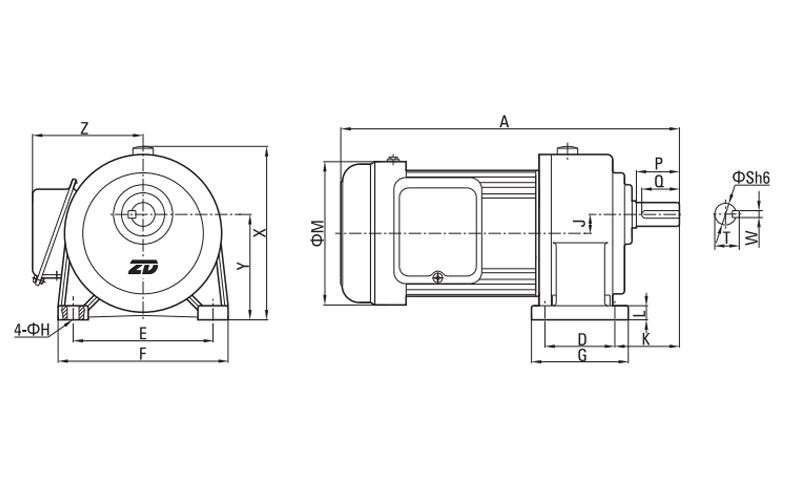

Horizontal
100W/750W Small AC Gear Motor
100W/750W Small AC Gear Motor 100W/750W Small AC Gear Motor

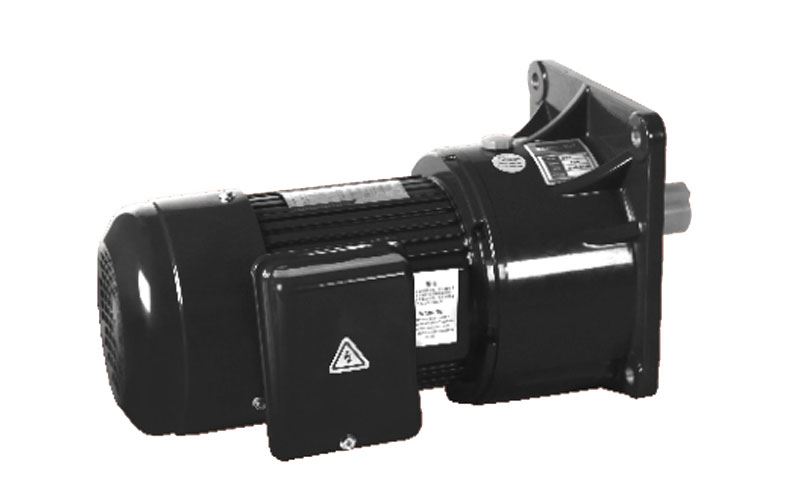

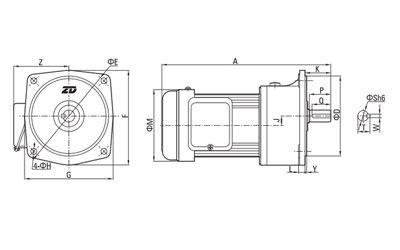

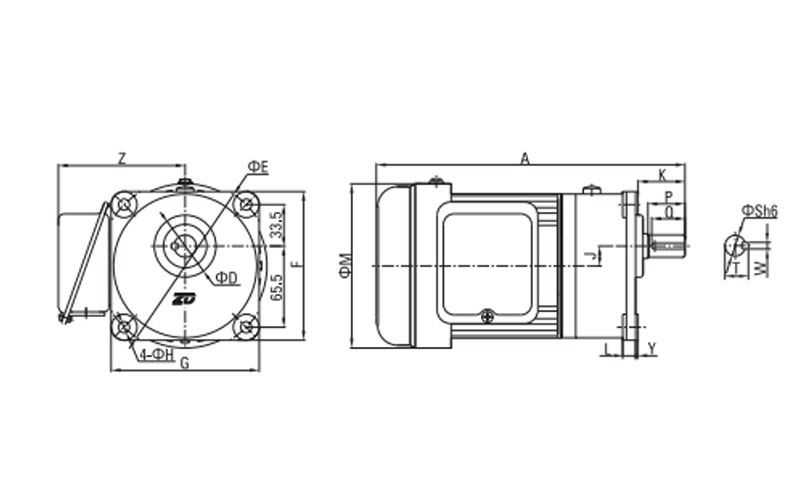

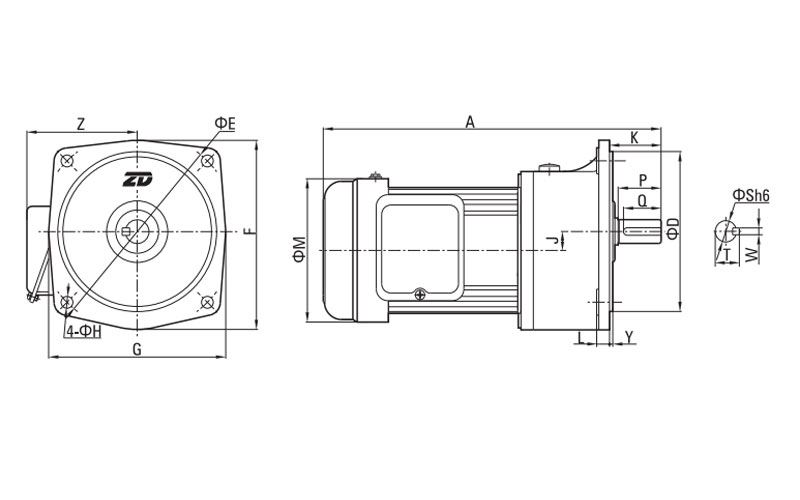

Vertical
100W/750W Small AC Gear Motor
100W/750W Small AC Gear Motor 100W/750W Small AC Gear Motor
Specifications
Unit: mm
Power Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
100W 1/8HP 60-200 (Standard Type) 280 65(148) 130(185) 158(175) 90(165) 12 7.5 60(48) 13(12) 133 152(/) 97.5(3) 105 22 40 35 7 25 7.30
250-180 (1#+2#) (Light Duty Type) 345 65(148) 130(185) 158(175) 90(165) 12 33.5 60(48) 13(12) 133 152(/) 97.5(3) 105 22 40 35 7 25 12.0
200W 1/4HP 15-90 (Standard Type) 315 65(148) 130(185) 158(175) 90(165) 12 17.5 60(48) 13(12) 133 152(/) 97.5(3) 105 22 40 35 7 25 9.00
100-200 (Light Duty Type) 315 65(148) 130(185) 158(175) 90(165) 12 7.5 60(48) 13(12) 133 152(/) 97.5(3) 105 22 40 35 7 25 9.00
400W 1/2HP 3-10 (Standard Type) 360 65(148) 130(185) 158(175) 90(165) 12 17.5 60(48) 13(12) 167 152(/) 97.5(3) 135 22 40 35 7 25 11.5
15-90 (Light Duty Type) 360 65(148) 130(185) 158(175) 90(165 12 17.5 60(48) 13(12 167 152(/) 97.5(3) 135 22 40 35 7 25 11.5
750W HP / / / / / / / / / / / / / / / / / / / /
3-25 (Light Duty Type) 380 65(148) 130(185) 158(175) 90(165) 12 7.5 60(48) 13(12) 167 152(/) 97.5(3) 135 22 40 35 7 25 13.5

※Tabulation "()" denote vertical box dimension

100W/1500W Small AC Gear Motor

Request a Quote PDF Download
Horizontal
100W/1500W Small AC Gear Motor
100W/1500W Small AC Gear Motor 100W/1500W Small AC Gear Motor
Vertical
100W/1500W Small AC Gear Motor
100W/1500W Small AC Gear Motor 100W/1500W Small AC Gear Motor
Specifications
Unit: mm
Power Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
00W 1/8HP 250-1800 (1#+3#) (Standard Type) 375 90(170) 140(220) 178(205) 120(195) 12 39 68(58) 17(13) 133 178(/) 116(3) 120 28 45 40 7 31.1 14.5
/ / / / / / / / / / / / / / / / / / / /
200W 1/4HP 100-200 (Standard Type) 350 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 133 178(/) 116(3) 105 28 45 40 7 31.1 9.00
250-1800 (1#+3#) (Light Duty Type) 410 90(170) 140(220) 178(205) 120(195) 12 39 68(58) 17(13) 167 178(/) 116(3) 105 28 45 40 7 31.1 18.0
400W /2HP 15-90 (Standard Type) 390 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 167 178(/) 116(3) 135 28 45 40 7 31.1 14.0
100-200 (Light Duty Type) 390 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 167 178(/) 116(3) 135 28 45 40 7 31.1 14.0
750W HP 3-25 (Standard Type) 410 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 167 178(/) 116(3) 135 28 45 40 7 31.1 16.0
30-120 (Light Duty Type) 410 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 167 178(/) 116(3) 135 28 45 40 7 31.1 16.0
1500W 2HP / / / / / / / / / / / / / / / / / / / /
3-30 (Light Duty Type) 418 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 192 193(/) 116(3) 139 28 45 40 7 31.1 25.0

※Tabulation "()" denote vertical box dimension

200W/1500W Small AC Gear Motor

Request a Quote PDF Download
Horizontal
200W/1500W Small AC Gear Motor
200W/1500W Small AC Gear Motor 200W/1500W Small AC Gear Motor
Vertical
200W/1500W Small AC Gear Motor
200W/1500W Small AC Gear Motor 200W/1500W Small AC Gear Motor
Specifications
Unit: mm
Power Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
200W 1/4HP 250-1800 (2#+4#) (Standard Type) 470 30(185) 170(255) 210(239) 165(216) 13 47.5 70(66.5 18(13) 133 216(/) 38.5(3) 120 32 55 50 10 35.5 28.0
Light Duty Type / / / / / / / / / / / / / / / / / / /
400W 1/2HP 100-200 (Standard Type) 430 30(185) 170(255) 210(239) 165(216) 13 30.0 70(66.5) 18(13) 167 216(/) 38.5(3) 135 32 55 50 10 35.5 27.0
250-1800 (2#+4#) (Light Duty Type) 510 30(185) 170(255) 210(239) 165(216) 13 47.5 70(66.5) 18(13) 167 216(/) 38.5(3) 135 32 55 50 10 35.5 30.0
750W HP 30-120 (Standard Type) 450 30(185) 170(255) 210(239) 165(216) 13 30.0 70(66.5) 18(13) 167 216(/) 38.5(3) 135 32 55 50 10 35.5 28.0
125-200 (Light Duty Type) 450 30(185) 170(255) 210(239) 165(216) 13 30.0 70(66.5) 18(13) 167 216(/) 38.5(3) 135 32 55 50 10 35.5 28.0
1500W 2HP 3-30 (Standard Type) 452 30(185) 170(255) 210(239) 165(216) 13 30.0 70(66.5) 18(13) 192 216(/) 38.5(3) 139 32 55 50 10 35.5 36.0
40-100 (Light Duty Type) 452 30(185) 170(255) 210(239) 165(216) 13 30.0 70(66.5) 18(13) 192 216(/) 38.5(3) 139 32 55 50 10 35.5 36.0

※Tabulation "()" denote vertical box dimension

400W/750W/1500W Small AC Gear Motor

Request a Quote PDF Download
Horizontal
400W/750W/1500W Small AC Gear Motor
400W/750W/1500W Small AC Gear Motor 400W/750W/1500W Small AC Gear Motor
Vertical
400W/750W/1500W Small AC Gear Motor
400W/750W/1500W Small AC Gear Motor 400W/750W/1500W Small AC Gear Motor
Specifications
Unit: mm
Power  Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
400W 1/2HP 250-1800 (3#+5#) (Standard Type) 580 50(230) 210(310) 265(277) 203(255) 15 59 83 20(18) 167 255(/) 160(5) 135 40 65 60 10 43.5 46.0
Light Duty Type / / / / / / / / / / / / / / / / / / /
750W HP 125-200 (Standard Type) 500 50(230) 210(310) 265(277) 203(255) 15 36 83 20(18) 167 255(/) 160(5) 135 40 65 60 10 43.5 42.5
250-1800 (3#+5#) (Light Duty Type) 600 50(230) 210(310) 265(277) 203(255) 15 59 83 20(18) 167 255(/) 160(5) 200 40 65 60 10 43.5 50.0
1500W 2HP 40-100 (Standard Type) 503 50(230) 210(310) 265(277) 203(255) 15 36 83 20(18) 192 255(/) 160(5) 139 40 65 60 10 43.5 52.0
110-150 (Light Duty Type) 503 50(230) 210(310) 265(277) 203(255) 15 36 83 20(18) 192 255(/) 160(5) 139 40 65 60 10 43.5 52.0

※Tabulation "()" denote vertical box dimension

1500W Small AC Gear Motor

Request a Quote PDF Download
Horizontal
1500W Small AC Gear Motor
1500W Small AC Gear Motor 1500W Small AC Gear Motor
Vertical
1500W Small AC Gear Motor
1500W Small AC Gear Motor 1500W Small AC Gear Motor
Specifications
Unit: mm
Power Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
1500W 2HP 110-180 (Standard Type) 560 70(280) 265(390) 335(367) 230(342) 18 51 97(92) 25 192 312(/) 200(5) 146 50 80 75 14 54 94.0

※Tabulation "()" denote vertical box dimension

Applications
  • Woodworking Industry Edge banding machines, gluing machines for woodworking applications.
  • Textile Industry Cloth inspecting machines (specialized equipment for pre-production fabric inspection in garment manufacturing), plastic weaving machines, printing machines, coating machines, dyeing machines, washing machines.
  • Packaging Industry Carton gluing machines.
  • Printing Industry Industrial printers.
  • Food Industry Ice cream makers, meat grinders, ice crushers, ice makers.
  • Intralogistics Conveyor systems for logistics and warehouse storage.
  • Livestock Industry Manure removal systems, pig farming equipment, broiler chicken systems, feeding systems.
  • Battery Manufacturing Kiln conveyor systems for anode and cathode materials.
Other Applications
  • Security Systems Large-scale security inspection machines.
  • Industrial Maintenance Chip removers (devices for collecting and transporting material, used with machining centers).
  • Recreational Equipment Electric swimming pool covers (motorized covers enabling automatic opening and closing).
  • Refrigeration Systems Condensers and evaporators.
Electric Swimming Pool Cover

An electric swimming pool cover is a kind of swimming pool cover that can be controlled electrically and automatically opened and closed by a motor drive.

Electric Swimming Pool Cover
