80mm 25W Induction Motor
80mm 25W Induction Motor

80mm 25W Induction Motor

Request a Quote
Motor Specifications
Model Output
Power
W 		Voltage
V 		Frequency
Hz 		Current
A 		Starting Torque
mN.m 		Rated Torque
m
N.m 		Rated Speed
r/min 		Capacitor
μF
4IK25GN-A 25 1ph 100 50 0.500 120 200 1250 8.0
60 0.550 165 1550
4IK25GN-E 25 1ph 110 60 0.450 120 165 1550 7.0
1ph 120 0.500
4IK25GN-C 25 1ph 220 50 0.250 120 200 1250 1.8
1ph 230 0.230
4IK25GN-H 25 1ph 220 60 0.230 120 165 1550 1.8
1ph 230
4IK25GN-S 25 3ph 220 50 0.185 350 200 1250 -
60 0.170 250 165 1550
4IK25GN-S3 25 3ph 380 50 0.107 350 200 1250 -
60 0.098 250 165 1550
Gear Motor-Torque TableAllowance Torque Unit: N.m
Type
Motor/Gearhead		 Gear Ratio 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100  120 150 180
Speed
r/min		 50Hz 200 166 120 100 83 60 50 42 30 25 20 16 15 12 10 8
60Hz 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10
4IK25GN-A
4IK25GN-E
4IK25GN-C
4IK25GN-H
4IK25GN-S
4IK25GN-S3
4GN()RC
4GN()RT		 Allowance
Torque		 50Hz 0.99 1.18 1.64 1.97 2.37 3.29 3.95 4.73 6.58 7.10 8.00 8.00  8.00 8.00 8.00 8.00
60Hz 0.80 0.95 1.33 1.59 1.91 2.65 3.18 3.82 5.30 5.73 7.16 8.00  8.00 8.00 8.00 8.00
Download PDF
Specifications
Specifications
Type
Motor/Gearhead 		Gear Ratio 3 3.6 5 6 7.5 9 10 2.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
Speed r/min 50Hz 500 417 300 250 200 166 150 120 100 83 75 60 50 41 37 30 25 20 16 15 2.5 10 8.3 7.5
60Hz 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45 36 30 24 20 18 15 12 10 9
4IK25GN-A
4IK25GN-E
4IK25GN-C
4IK25GN-H
4IK25GN-S
4IK25GN-S3		 4GN()K 50Hz 0.49 0.58 0.81 0.97 1.20 1.50 1.55 2.00 2.40 2.90 3.17 3.70 4.40 5.30 5.57 6.60 7.90 8.00 8.00 8.00 8.00 8.00 8.00 8.00
60Hz 0.40 0.48 0.67 0.80 1.00 1.20 1.25 1.70 2.00 2.40 2.64 3.00 3.60 4.30 4.49 5.40 6.50 8.00 8.00 8.00 8.00 8.00 8.00 8.00
PDF Download

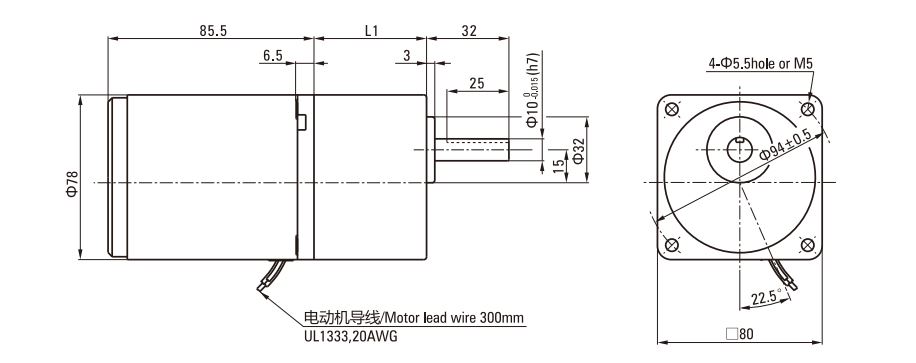

Specifications
L1=43.5mm
Applications
  • Food and Beverage Processing Sausage grillers, milk tea sealing machines, ice makers, automatic tea-roasting machines, meat grinders.
  • Packaging Equipment Carton sealers, kraft paper packaging machines.
  • Semiconductor Manufacturing: Precision handling and assembly equipment.
  • Battery Manufacturing Lithium battery processing systems.
  • Intralogistics Conveyor systems for logistics and warehousing.
  • Printing and Binding Conical plastic cup printers, industrial printers, paper mounting machines.
  • Woodworking Machinery Edge banding machines, sawing equipment, automated woodworking production lines.
  • Textile Industry Textile production equipment.
  • Livestock Management Manure removal systems, pig farming equipment, feeding systems.
  • Inspection Systems Security inspection machines.
  • Dust Removal Systems Industrial dust removal equipment.
  • Injection Molding Auxiliary systems for injection molding machines.
  • Access Control Systems Speed gates, channel gates.
