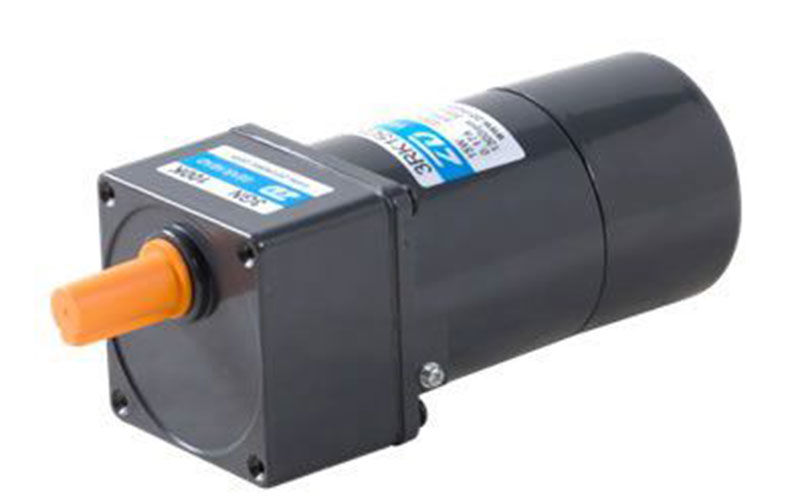

60mm 6W Brake Motor

60mm 6W Brake Motor

Request a Quote PDF Download
Motor Specifications
Model Rating Output
Power
W 		Voltage
V 		Frequency
Hz 		Current
A 		Starting Torque
mN.m 		Rated Torque
mN.m 		Rated Speed
r/min 		Capacitor
μF
2RK6GN-AM 30min 6 1ph 100 50 0.265 60 48 1200 4.0
60 0.232 55 40 1450
2RK6GN-EM 30min 6 1ph 110 60 0.185 45 40 1450 2.5
1ph 120 0.200
2RK6GN-CM 30min 6 1ph 220 50 0.145 55 48 1200 1.0
1ph 230 0.150
2RK6GN-HM 30min 6 1ph 220 60 0.145 60 40 1450 1.0
lph 230 0.150
2RK6GN-SM 30min 6 3ph 220 50 0.076 85 48 1200 -
60 0.065 70 40 1450
2RK6GN-S3M 30min 6 3ph 380 50 0.044 85 48 1200 -
60 0.038 70 40 1450
Gear Motor-Torque TableAllowance Torque Unit: N.m
Type
Motor/Gearhead		 Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
 Speed r/min 50Hz 500 417 300 250 200 166 150 120 100 83 75 60 50 41 37 30 25 20 16 15 12.5 10 8.3 7.5
60Hz 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45 36 30 24 20 18 15 12 10 9
2RK6GN-AM
2RK6GN-EM
2RK6GN-CM
2RK6GN-HM
2RK6GN-SM
2RK6GN-S3M		  2GN()K 50Hz 0.12 0.14 0.19 0.23 0.29 0.35 0.39 0.49 0.58 0.70 0.75 0.88 1.10 1.30 1.39 1.60 1.90 2.40 2.90 3.00 3.00 3.00 3.00 3.00
60Hz 0.10 0.12 0.16 0.19 0.24 0.29 0.32 0.41 0.49 0.58 0.62 0.73 0.88 1.10 1.15 1.30 1.60 2.00 2.40 2.60 3.00 3.00 3.00 3.00

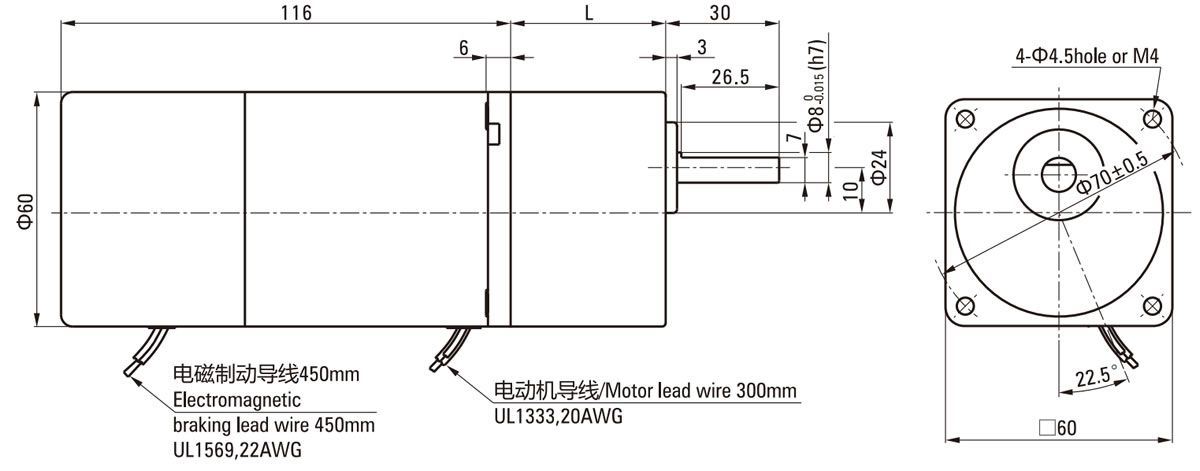

Specifications
L1=41.5mm
Applications
  • Food and Beverage Processing Sausage grillers, milk tea sealing machines, ice makers, automatic tea-roasting machines, meat grinders.
  • Packaging Equipment Carton sealers, kraft paper packaging machines.
  • Semiconductor Manufacturing: Precision handling and assembly equipment.
  • Battery Manufacturing Lithium battery processing systems.
  • Intralogistics Conveyor systems for logistics and warehousing.
  • Printing and Binding Conical plastic cup printers, industrial printers, paper mounting machines.
  • Woodworking Machinery Edge banding machines, sawing equipment, automated woodworking production lines.
  • Textile Industry Textile production equipment.
  • Livestock Management Manure removal systems, pig farming equipment, feeding systems.
  • Inspection Systems Security inspection machines.
  • Dust Removal Systems Industrial dust removal equipment.
  • Injection Molding Auxiliary systems for injection molding machines.
  • Access Control Systems Speed gates, channel gates.
