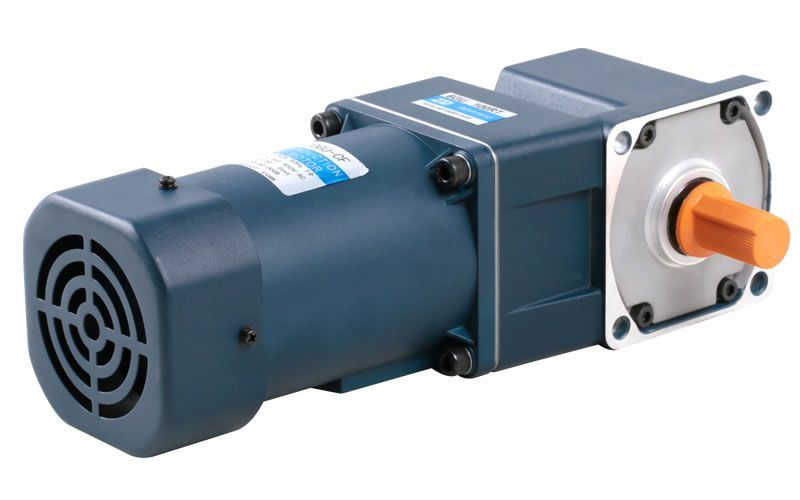

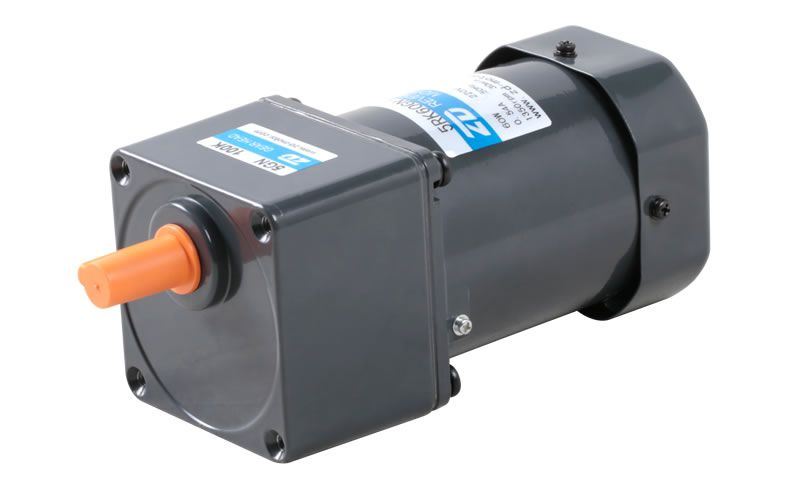

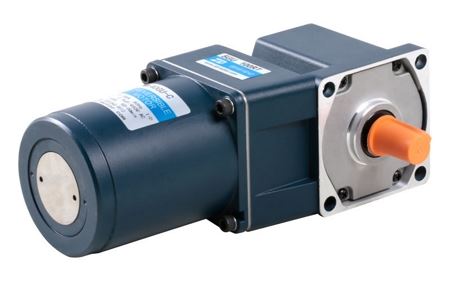

90mm 60W Reversible Motor
90mm 60W Reversible Motor

90mm 60W Reversible Motor

Request a Quote
Motor Specifications
Model Output
Power
W 		Voltage
V 		Frequency
Hz 		Current
A 		Starting Torque
mN.m 		Rated Torque
m
N.m 		Rated Speed
r/min 		Capacitor
μF
5RK60GU-AF 60 1ph 100 50 1.26 470 470 1250 25
60 1.70 380 1550
5RK60GU-EF 60 1ph 110 60 1.05 330 380 1550 15
1ph 120 380
5RK60GU-CF 60 1ph 220 50 0.55 420 470 1250 4.5
1ph 230 0.60 460
5RK60GU-HF 60 1ph 220 60 0.55 420 380 1550 4.5
1ph 230 0.60 460
Gear Motor-Torque TableAllowance Torque Unit: N.m
Type
Motor/Gearhead		 Gear Ratio 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180
Speed
r/min		 50Hz 200 166 120 100 83 60 50 41 30 25 20 16 15 12 10 8
60Hz 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10
5RK60GU-AF
5RK60GU-EF
5RK60GU-CF

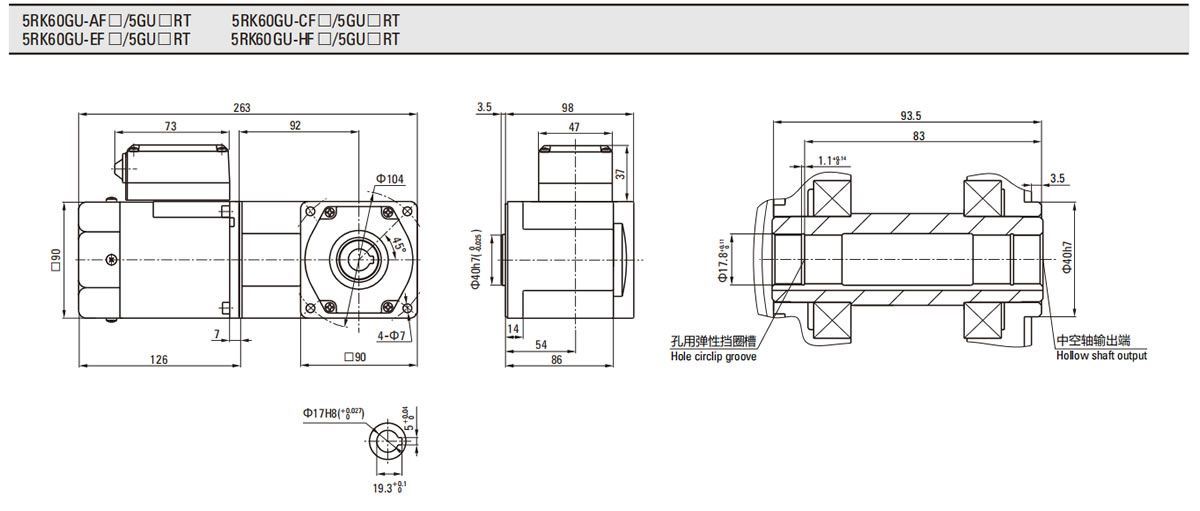

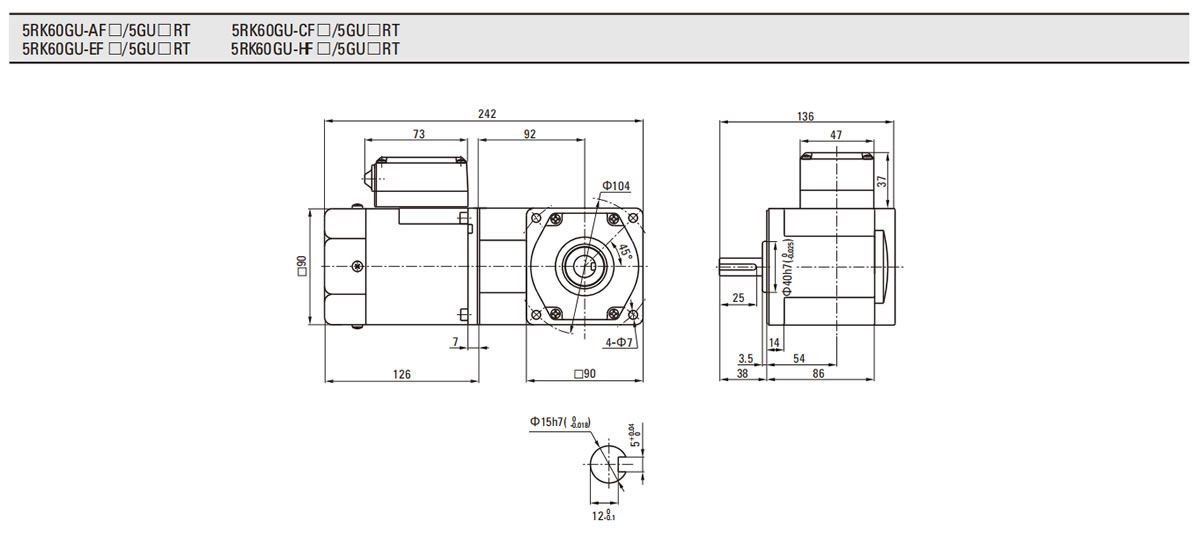

5RK60GU-HF		 5GU()RC
5GU()RT		 Allowance
Torque		 50Hz 2.37 2.84 3.95 4.73 5.68 7.89 9.47 10.2 14.2 17.0 20.0 20.0 20.0 20.0 20.0 20.0
60Hz 1.91 2.29 3.18 3.82 4.58 6.36 7.64 8.25 11.5 13.7 17.2 20.0 20.0 20.0 20.0 20.0
PDF Download
Specifications
Specifications
90mm 60W-GU
PDF Download
Type
Motor/Gearhead		 Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
Speed r/min  50Hz 500 417 300 250 200 166 150 120 100 83 75 60 50 41 37 30 25 20 16 15 12.5 10 8.3 7.5
 60Hz 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45 36 30 24 20 18  15 12 10 9
5RK60GU-AF
5RK60GU-EF
5RK60GU-CF
5RK60GU-HF		 5GU()KB
5GU()K		  50Hz 1.10 1.40 1.90 2.30 2.90 3.40 3.61 4.80 5.70 6.80 7.12 8.60 10.0 10.3 11.6 12.4 15.5 18.6 20.0 20.0 20.0 20.0 20.0 20.0
 60Hz 0.92 1.10 1.50 1.80 2.30 2.80 3.01 3.80 4.60 5.50 5.73 6.90 8.30 8.30 9.70 10.0 12.5 15.0 18.8 20.0 20.0 20.0 20.0 20.0
Specifications

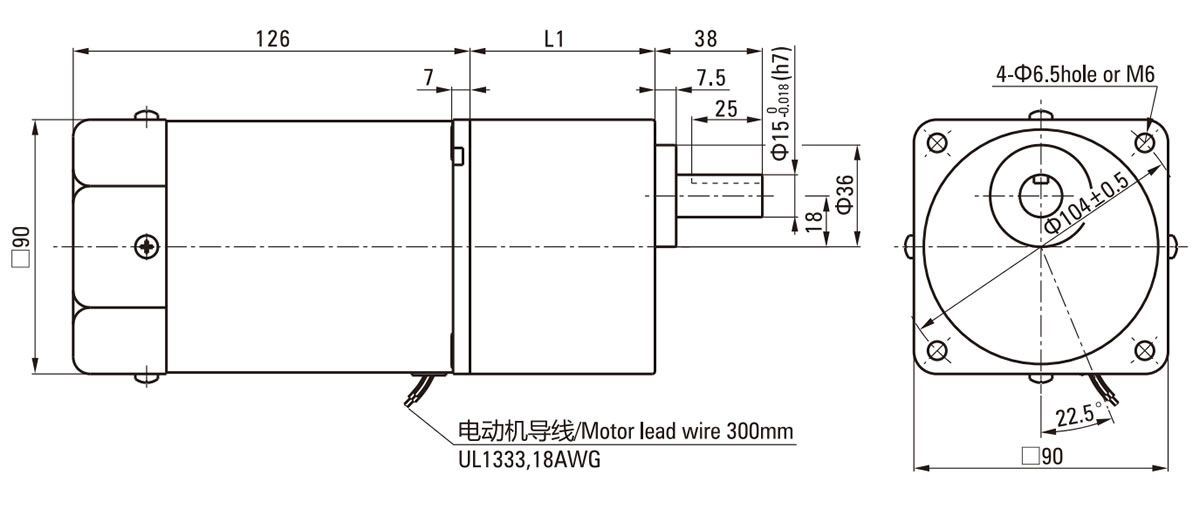

L1=65.5mm
90mm 60W-GN
PDF Download
Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
r/min 50Hz 500 417 300 250 200 166 150 120 100 83 75 60 50 41 37 30 25 20 16 15 12.5 10 8.3 7.5
60Hz 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45 36 30 24 20 18 15 12 10 9
Specifications

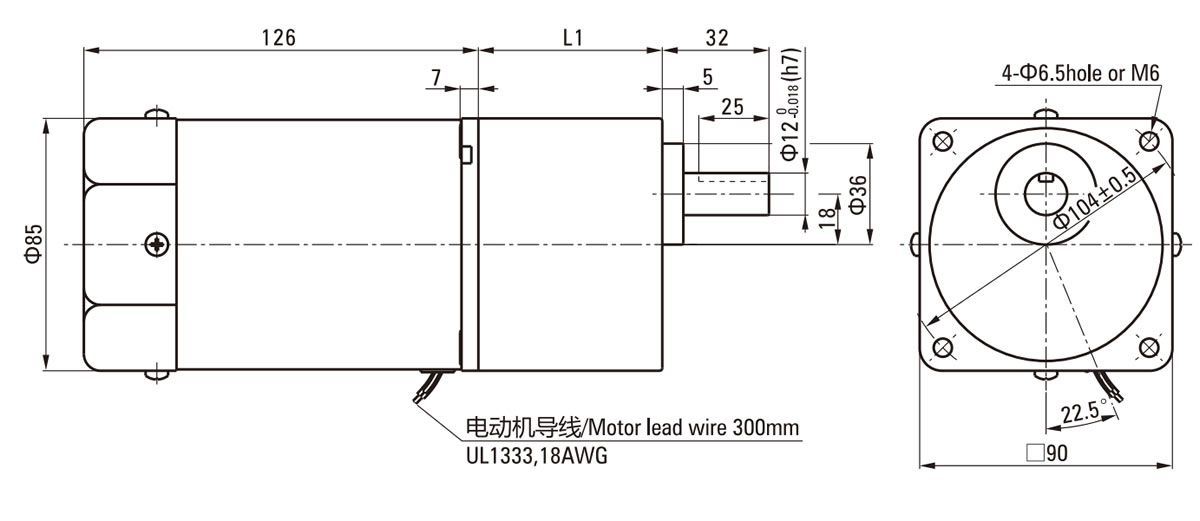

L1=60mm
Applications
  • Food and Beverage Processing Sausage grillers, milk tea sealing machines, ice makers, automatic tea-roasting machines, meat grinders.
  • Packaging Equipment Carton sealers, kraft paper packaging machines.
  • Semiconductor Manufacturing: Precision handling and assembly equipment.
  • Battery Manufacturing Lithium battery processing systems.
  • Intralogistics Conveyor systems for logistics and warehousing.
  • Printing and Binding Conical plastic cup printers, industrial printers, paper mounting machines.
  • Woodworking Machinery Edge banding machines, sawing equipment, automated woodworking production lines.
  • Textile Industry Textile production equipment.
  • Livestock Management Manure removal systems, pig farming equipment, feeding systems.
  • Inspection Systems Security inspection machines.
  • Dust Removal Systems Industrial dust removal equipment.
  • Injection Molding Auxiliary systems for injection molding machines.
  • Access Control Systems Speed gates, channel gates.
