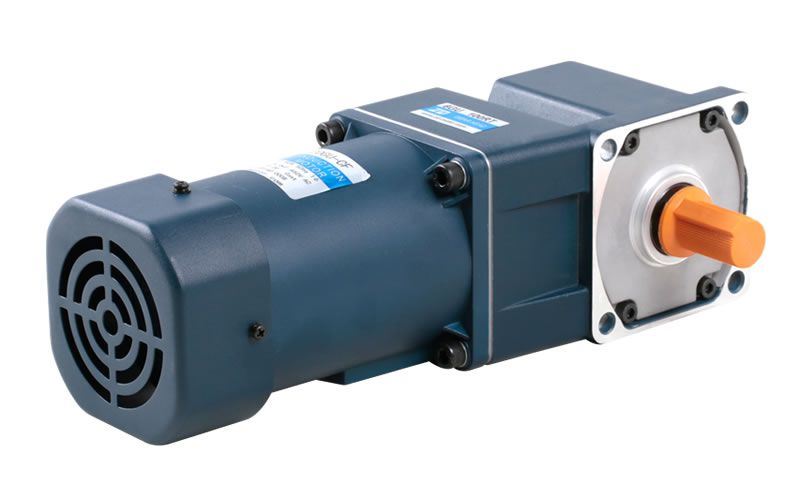

90mm 90W Reversible Motor

90mm 90W Reversible Motor

Request a Quote PDF Download
Motor Specifications
Model Output
Power
W 		Voltage
V 		Frequency
Hz 		Current
A 		Starting Torque
mN.m 		Rated Torque
m
N.m 		Rated Speed
r/min 		Capacitor
μF
5RK90GU-AF 90 1ph 100 50 1.78 600 700 1250 30
60 2.35 570 1550
5RK90GU-EF 90 1ph 110 60 1.72 550 570 1550 25
1ph 120 600
5RK90GU-CF 90 1ph 220 50 0.82 560 700 1250 6.0
1ph 230 0.81
5RK90GU-HF 90 1ph 220 60 0.81 560 560 1550 6.0
1ph 230 0.80
Gear Motor-Torque TableAllowance Torque Unit: N.m
Type
Motor/Gearhead		 Gear Ratio 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180
Speed
r/min		 50Hz 200 166 120 100 83 60 50 41 30 25 20 16 15 12 10 8
60Hz 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10
5RK90GU-AF
5RK90GU-EF
5RK90GU-CF
5RK90GU-HF		 5GU()RC
5GU()RT		 Allowance
Torque		 50Hz  3.55 4.26 5.92 7.10 8.52 11.8 14.2 15.3 20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0
60Hz  2.86 3.44 4.77 5.73 6.87 9.54 11.5 12.4 17.2 20.0 20.0 20.0 20.0 20.0 20.0 20.0
Specifications
Applications
  • Food and Beverage Processing Sausage grillers, milk tea sealing machines, ice makers, automatic tea-roasting machines, meat grinders.
  • Packaging Equipment Carton sealers, kraft paper packaging machines.
  • Semiconductor Manufacturing: Precision handling and assembly equipment.
  • Battery Manufacturing Lithium battery processing systems.
  • Intralogistics Conveyor systems for logistics and warehousing.
  • Printing and Binding Conical plastic cup printers, industrial printers, paper mounting machines.
  • Woodworking Machinery Edge banding machines, sawing equipment, automated woodworking production lines.
  • Textile Industry Textile production equipment.
  • Livestock Management Manure removal systems, pig farming equipment, feeding systems.
  • Inspection Systems Security inspection machines.
  • Dust Removal Systems Industrial dust removal equipment.
  • Injection Molding Auxiliary systems for injection molding machines.
  • Access Control Systems Speed gates, channel gates.
