90mm 90W Brush DC Gear Motor
90mm 90W Brush DC Gear Motor

90mm 90W Brush DC Gear Motor

Request a Quote
Motor Specifications
Mode Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A /min mN.m A H kg
Z5090-12 12 90 3100 2.0Max 2600 330 12.0 2000 2.2
Z5090-24 24 90 3300 1.0Max 2800 307 5.00 2000 2.2
Z5090-90 90 90 3000 0.3Max. 2900 307 1.40 2000 2.2
Gear Motor-Torque TableAllowance Torque Unit: N.m
Type
Motor/Gearhead		 Gear Ratio 7.5 9 12.5  15  18  25 30 36  50  60 75  90  100 120  150  180
Speed
r/min		 373 311 224 186 155 112 93 77  56  46 37  31 28 23 18 15
 Z5D90-24GU-28S 5GU()RC

5GU()RT		 1.68 2.01 2.80 3.36 4.03 5.59 6.71 7.25 10.1 12.1 15.1 18.1 20.0 20.0 20.0 20.0
17.1 20.5 28.6 34.3 41.1 57.0 68.4 74.0 103 123 154 185  200 200  200  200
PDF Download

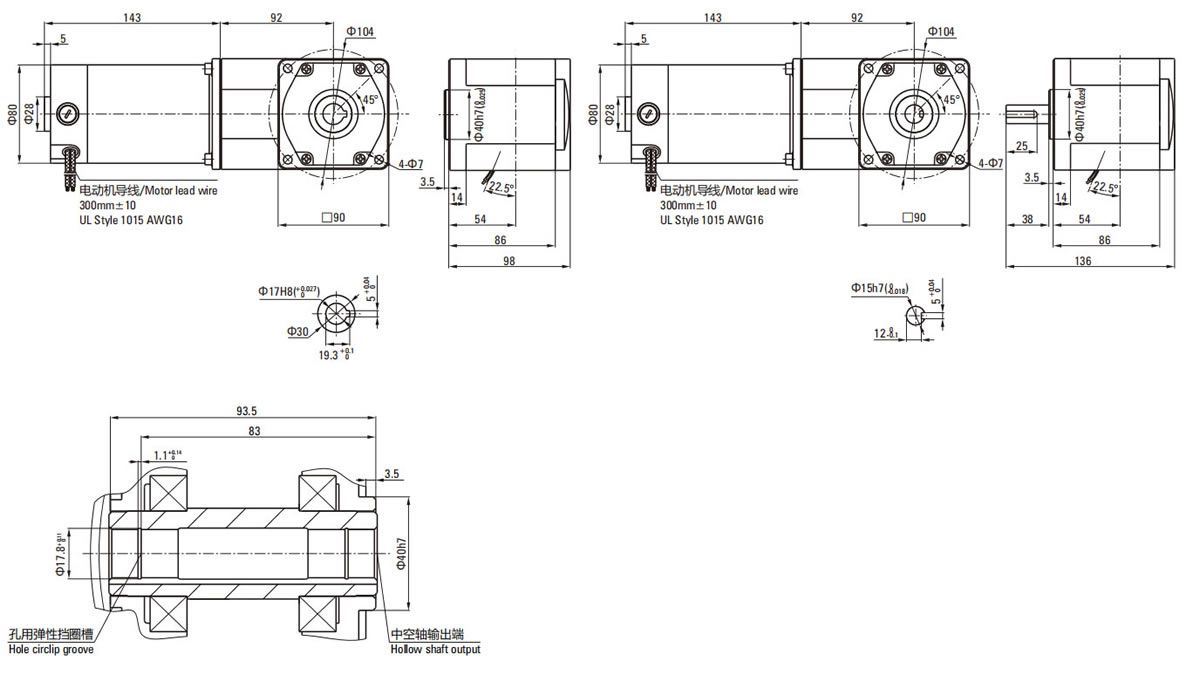

Specifications
Type Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60  75 90 100 120 150 180 200
Z5D90-24GU Speed r/min 933 778 560 467 373 311 280 224 187 156 140 112 93 78 70 56 47  37 31 28 23 19 16 14
5GU()KB 0.75 0.90 1.24 1.49 1.86 2.24 2.24 2.80 3.36 4.03 4.03 5.03 6.04 7.25 8.06 10.1 12.4 15.1 16.3 18.1 20.0 20.0 20.0 20.0
7.31 8.77 12.2 14.6 18.3 21.9 21.9 27.4 32.9 39.5 39.5 49.3 59.2 71.1 78.9 98.7 118 148 160 178 200 200 200 200
PDF Download
Specifications

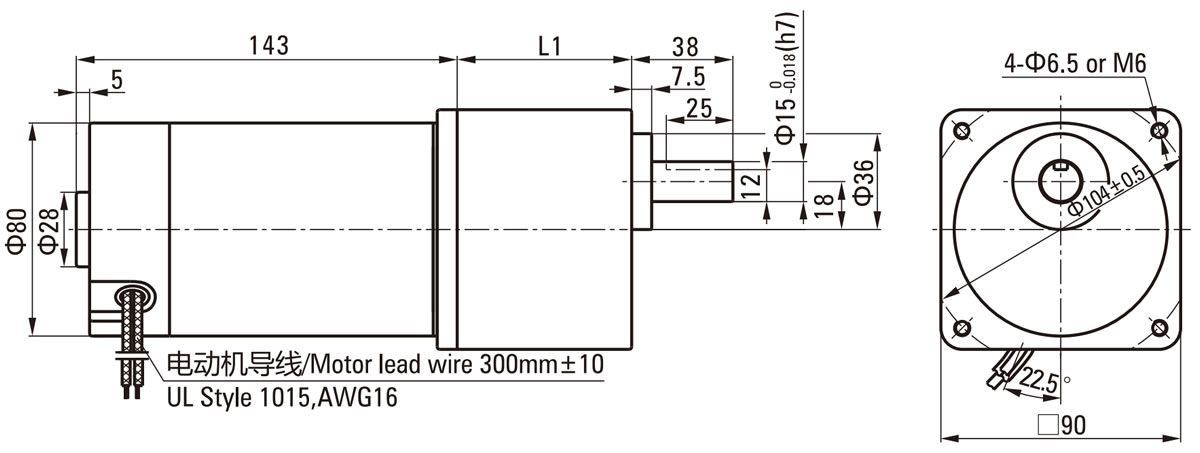

L1=42.5mm
Applications
  • Cleaning Equipment: Floor scrubbers, photovoltaic cleaning robots, autonomous sweeping robots.
  • Healthcare Mobility: Electric wheelchairs.
  • Automation: Belt conveyors for injection molding, automated production lines, photovoltaic panel conveyors, custom automation lines, 3C automation systems.
  • Food Industry: Pizza baking ovens.
  • Access Control: Channel gates, industrial doors, vehicle barriers.
  • Positioning Systems: Indexers for precision assembly.
