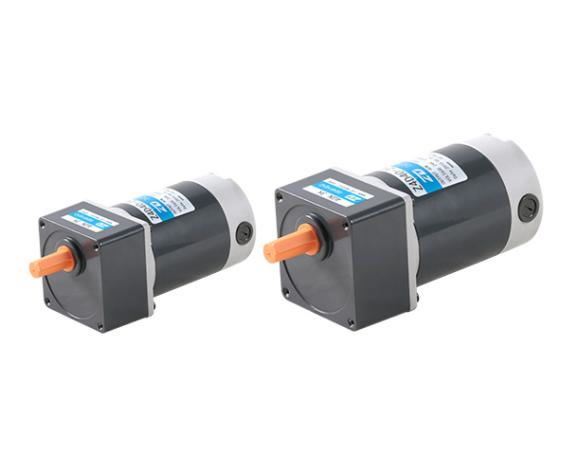

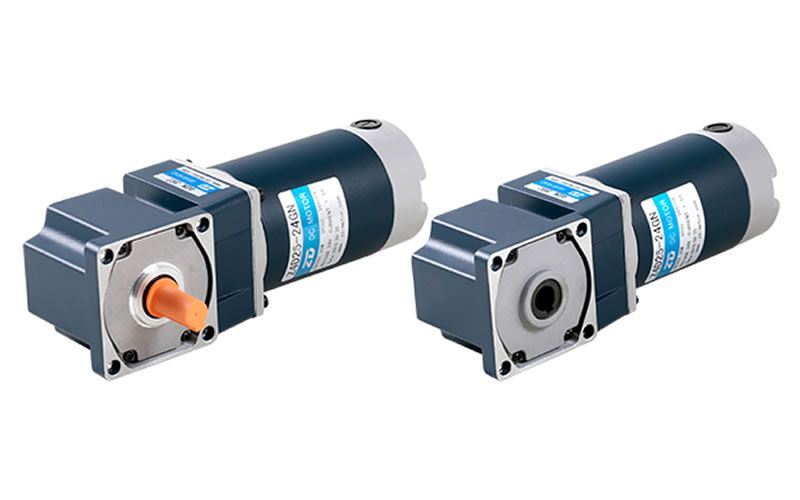

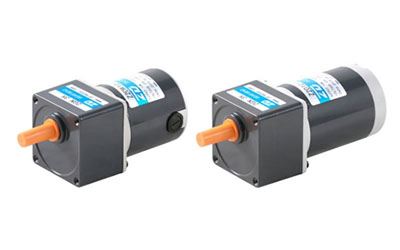

80mm 25W Brush DC Gear Motor
80mm 25W Brush DC Gear Motor

80mm 25W Brush DC Gear Motor

Request a Quote
Motor Specifications
Mode Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
Z4D25-12 12 25 3200 1.4Max. 3100 77 3.6 2000 1.7
Z4D25-24 24 25 3000 0.7Max 2850 84 1.7 2000 1.7
Z4025-90 90 25 3200 0.2Max. 3000 80 0.5 2000 1.7
Gear Motor-Torque TableAllowance Torque Unit: N.m
 Type
Motor/Gearhead		 Gear Ratio 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180
Speed
r/min		 380 316 228 190 158 114 95 79 57 47 38 90 100 120 150 180
 Z4D25-24GN-28.5S 4GN()RC

4GN()RT		 0.46 0.55 0.76 0.92 1.10 1.53 1.80 2.20 3.05 3.30 4.12 4.95 5.50 6.60 80.0 80.0
1.69 5.61 7.75 9.38 11.2 15.6 18.4 22.4 31.1 33.7 42.0 50.5 56.1 67.3 80.0 80.0
PDF Download

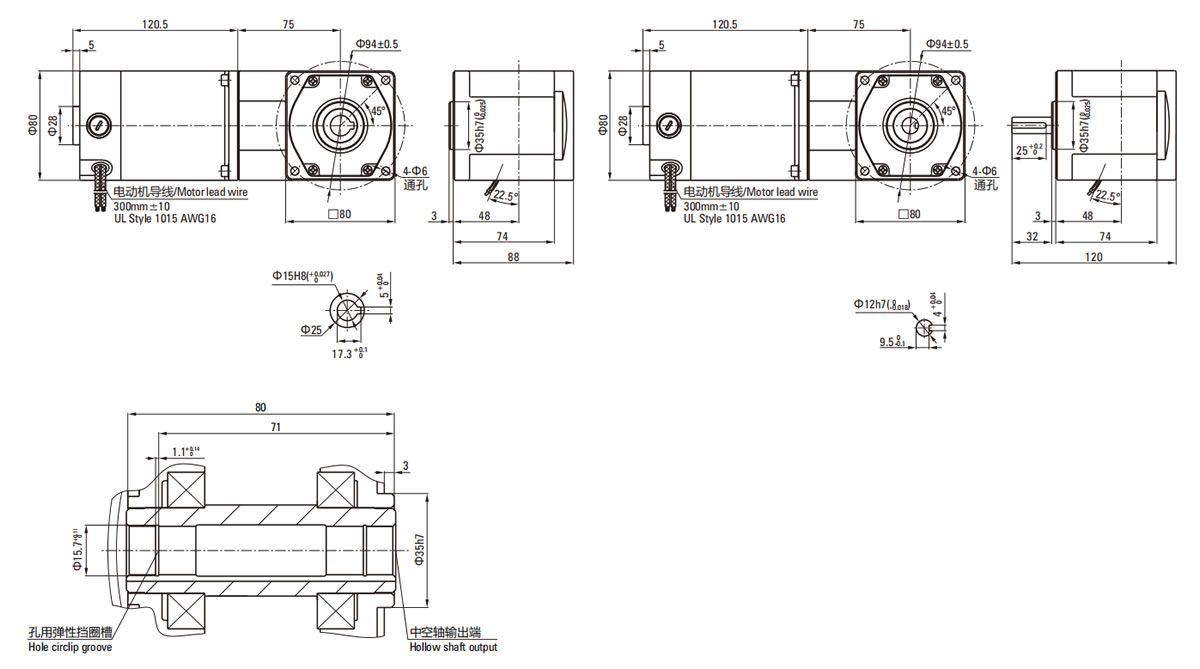

Specifications
Type Gear Ratio 3 3.6 5 6 7.5 9 10 12.5  15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
Z4D25-24GN Speed r/min 950 792 570 475 380 317 285 228 190 158 143 114 95 79 71 57 48 38 32 29 24 19 16 14
4GN()K 0.20 0.24 0.34 0.41 0.51 0.61 0.68 0.85 1.02 1.22 1.36 1.53 1.83 2.20 2.44 3.05 3.30 4.12 4.95 5.50 6.60 8.00 8.00 8.00
1.99 2.39 3.32 3.99 4.99 5.98 6.65 8.31 10.0 12.0 13.3 15.0 18.0 21.5 23.9 29.9 32.3 40.4 48.5 53.9 64.6 80.0 80.0 80.0
PDF Download

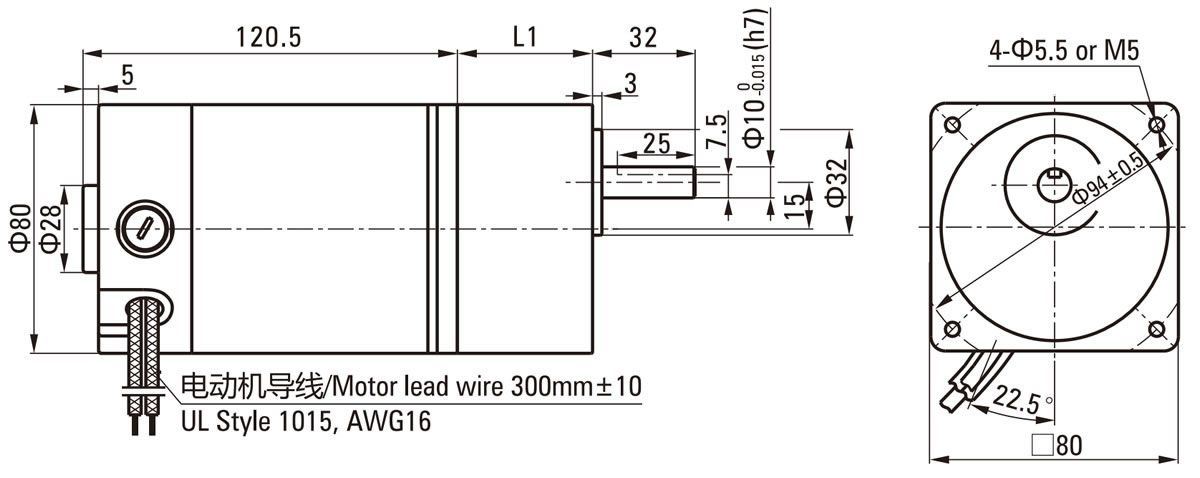

Specifications
L1=42.5mm
Applications
  • Cleaning Equipment: Floor scrubbers, photovoltaic cleaning robots, autonomous sweeping robots.
  • Healthcare Mobility: Electric wheelchairs.
  • Automation: Belt conveyors for injection molding, automated production lines, photovoltaic panel conveyors, custom automation lines, 3C automation systems.
  • Food Industry: Pizza baking ovens.
  • Access Control: Channel gates, industrial doors, vehicle barriers.
  • Positioning Systems: Indexers for precision assembly.
