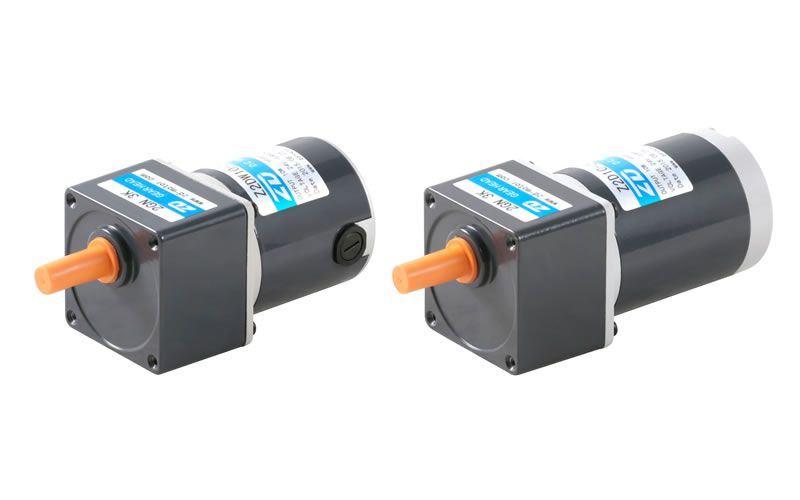

60mm 10W Brush DC Gear Motor

60mm 10W Brush DC Gear Motor

Request a Quote PDF Download
Motor Specifications
Model Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
Z2010-12 12 10 3200 1.0Max 2800 34 2.0 2000 0.7
Z2DW10-12 12 10 3200 1.0Max 2800 34 2.0 2000 0.7
Z2D10-24 24 10 3300 0.5Max. 3000 32 0.9 2000 0.7
Z20W10-24 24 10 3300 0.5Max. 3000 32 0.9 2000 0.7
Z2D10-90 90 10 3200 0.3Max. 2800 34 0.6 2000 0.7
Z2DW10-90 90 10 3200 0.3Max. 2800 34 0.6 2000 0.7
Gear Motor-Torque TableAllowance Torque Unit: N.m
Type Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
Z2D10-24GN Speed r/min 1000 833 600 500 400 333 300 240 200 167 150 120 100 83 75 60 50 40 33 30 25 20 17 15
2GN()K 0.08 0.09 0.13 0.15 0.19 0.23 0.26 0.32  0.39  0.46 0.46 0.58 0.70 0.84  0.93 1.16 1.25 1.75 1.88 2.09 2.51 3.00 3.00 3.00
0.76 0.91 1.26 1.52 1.90 2.27 2.53 3.16 3.79 4.55 4.55 5.69 6.82 8.19 9.10 11.4 12.3 15.4 18.4 20.5 24.6 30.0 30.0 30.0

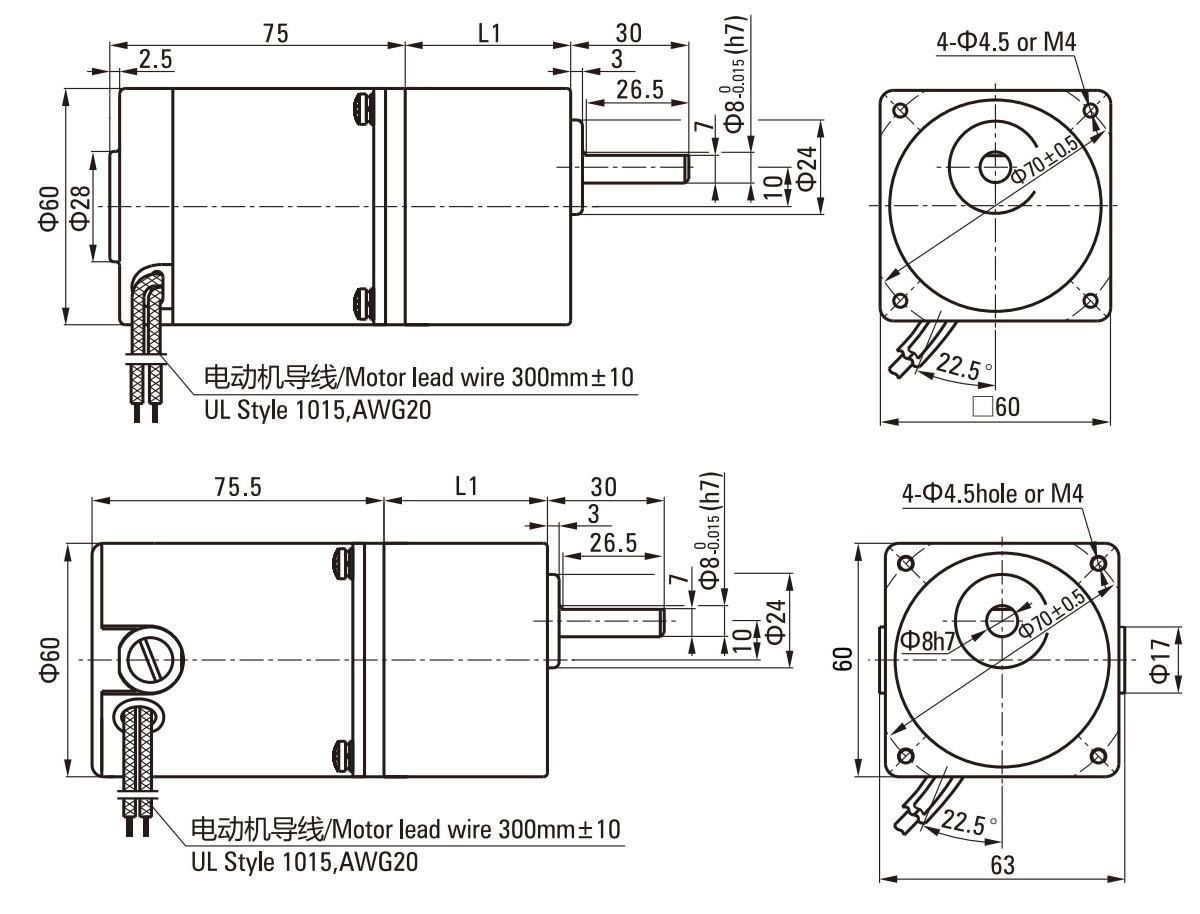

Specifications
L1=41mm
Applications
  • Cleaning Equipment: Floor scrubbers, photovoltaic cleaning robots, autonomous sweeping robots.
  • Healthcare Mobility: Electric wheelchairs.
  • Automation: Belt conveyors for injection molding, automated production lines, photovoltaic panel conveyors, custom automation lines, 3C automation systems.
  • Food Industry: Pizza baking ovens.
  • Access Control: Channel gates, industrial doors, vehicle barriers.
  • Positioning Systems: Indexers for precision assembly.
