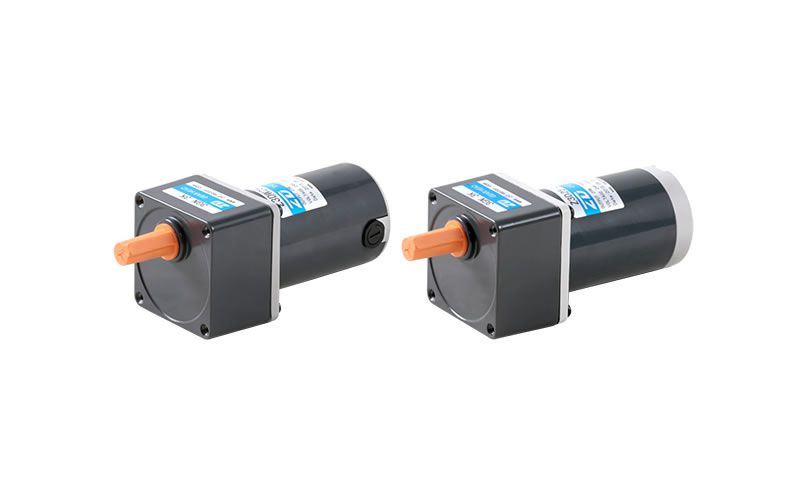

70mm 25W Brush DC Gear Motor

70mm 25W Brush DC Gear Motor

Request a Quote PDF Download
Motor Specifications
Model Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
Z3D25-12 12 25 3300 1.0Max 3000 80 3.5 2000 1.0
Z3DW25-12 12 25 3300 1.0Max 3000 80 3.5 2000 1.0
Z3D25-24 24 25 3200 0.5Max. 2800 85 1.6 2000 1.0
Z3DW25-24 24 25 3200 0.5Max. 2800 85 1.6 2000 1.0
Z3D25-90 90 25 3100 0.3Max. 2700 88 0.6 2000 1.0
Z3DW25-90 90 25 3100 0.3Max. 2700 88 0.6 2000 1.0
Gear Motor-Torque TableAllowance Torque Unit: N.m
Type Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
Z3D25-24GN Speed r/min 933 778 560 467 373 311 280 224 187 156 140 112 93 78 70 56 47 37 31 28 23 19 16 14
3GN()K 0.21 0.25 0.35 0.41 0.52 0.62 0.69 0.86 1.04 1.24 1.24 1.55 1.86 2.24 2.49 3.11 3.73 4.66 5.00 5.00 5.00 5.00 5.00 5.00
2.03 2.44 3.38 4.06 5.08 6.09 6.77 8.46 10.2 12.2 12.2 15.2 18.3 21.9 24.4 30.5 36.6 45.7 50.0 50.0 50.0 50.0 50.0 50.0

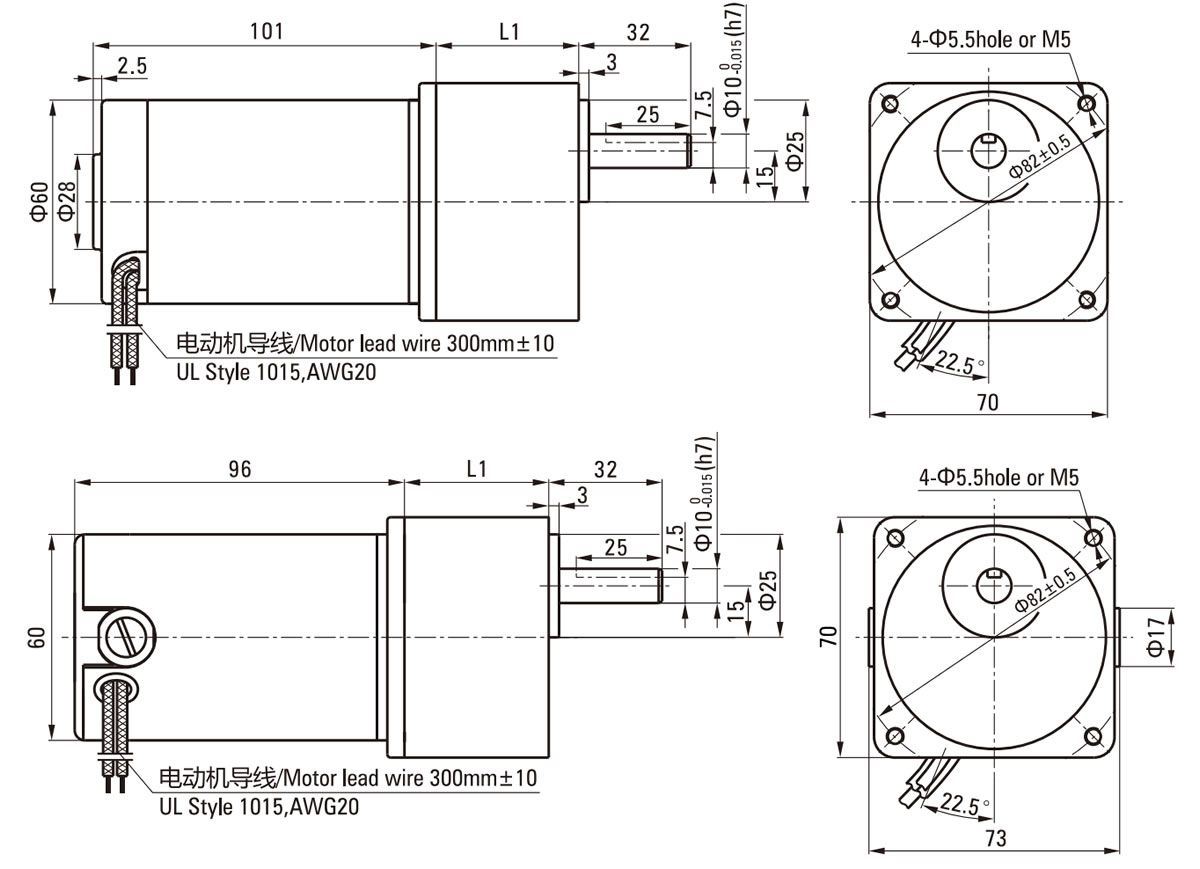

Specifications
L1=42mm
Applications
  • Cleaning Equipment: Floor scrubbers, photovoltaic cleaning robots, autonomous sweeping robots.
  • Healthcare Mobility: Electric wheelchairs.
  • Automation: Belt conveyors for injection molding, automated production lines, photovoltaic panel conveyors, custom automation lines, 3C automation systems.
  • Food Industry: Pizza baking ovens.
  • Access Control: Channel gates, industrial doors, vehicle barriers.
  • Positioning Systems: Indexers for precision assembly.
