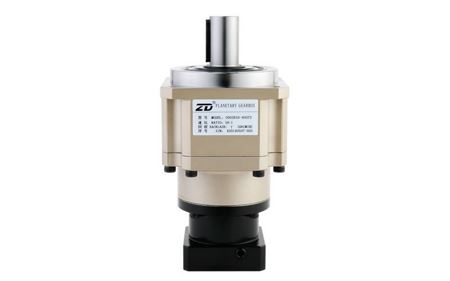

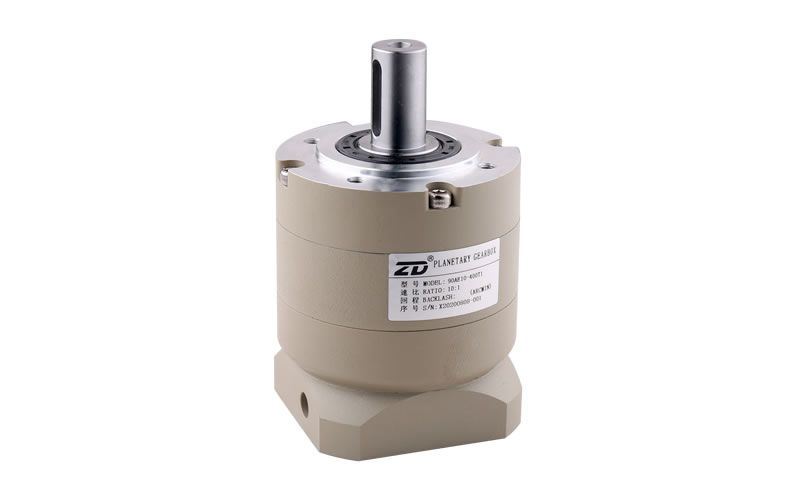

AE Helical Gear Planetary Gearbox

AE Helical Gear Planetary Gearbox

Application
  • Single-piece Separation Equipment
  • Weighing Conveyors
Request a Quote PDF Download

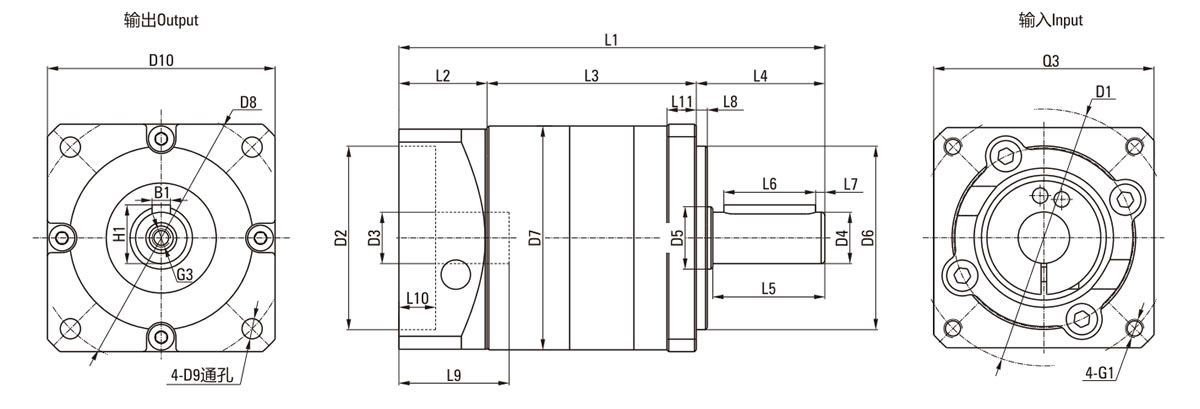

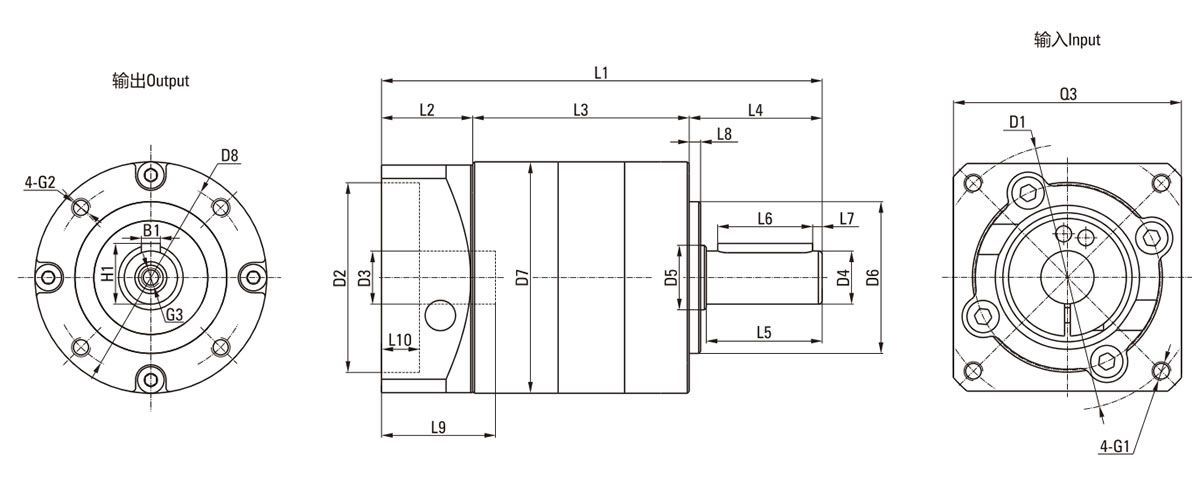

Specifications
Unit: mm
Model 60AE 90AE 120AE
Number of Stage 1 2 1 2 1 2
Overall Length L1 213 246.5 288.5 331.5 316.5 364.5
Body Length L3 77.5 111 102.5 145.5 121.5 169
Output
Shaft Length from Output L4 64.5 87 90
Shaft Length from Spigot L5 58 80 82
Key Length L6 50 70 70
Distance from Shaft End L7 4 5 6
Spigot Length L8 4 5 6
Input
Motor Flange Length L2 71 100 105
Motor Shaft Length L9 58 79 82
Motor Location Depth L10 10 10 8
Specifications
Specifications
Other Products

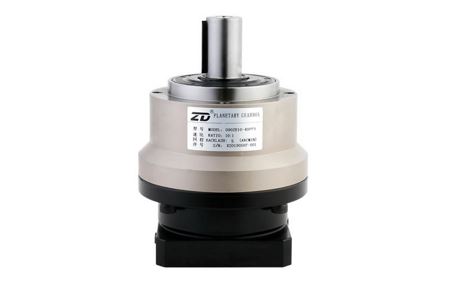

AE Helical Gear Planetary Gearbox AE Helical Gear Planetary Gearbox

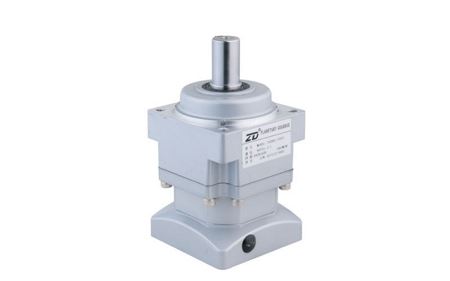

AF Helical Gear Planetary Gearbox AF Helical Gear Planetary Gearbox

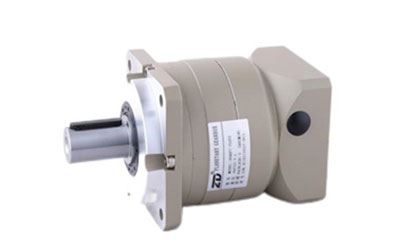

HD Helical Gear Planetary Gearbox HD Helical Gear Planetary Gearbox

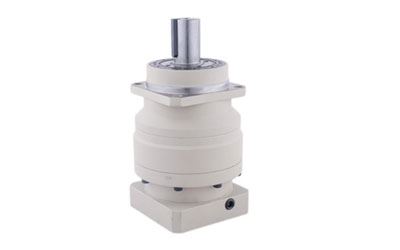

ZB Helical Gear Planetary Gearbox ZB Helical Gear Planetary Gearbox

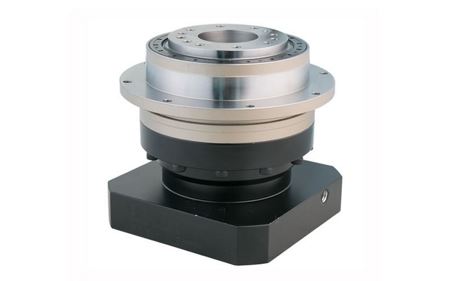

ZE Helical Gear Planetary Gearbox ZE Helical Gear Planetary Gearbox

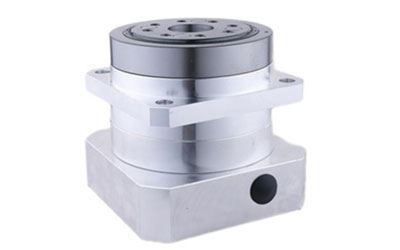

ZBF Helical Gear Planetary Gearbox ZBF Helical Gear Planetary Gearbox
