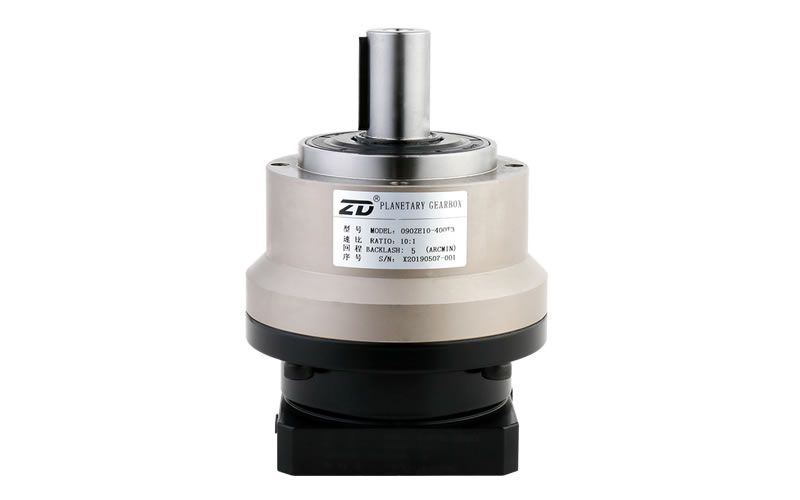

ZE Helical Gear Planetary Gearbox

ZE Helical Gear Planetary Gearbox

Application
  • Box-type Shuttle Vehicle
Request a Quote PDF Download
Specifications
Unit: mm

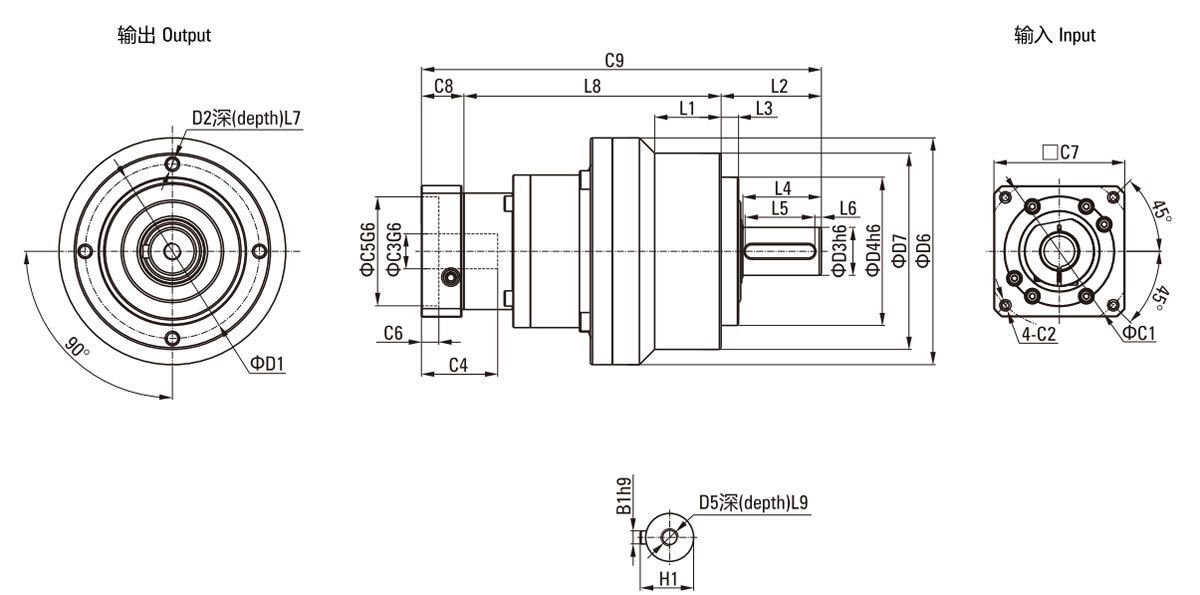

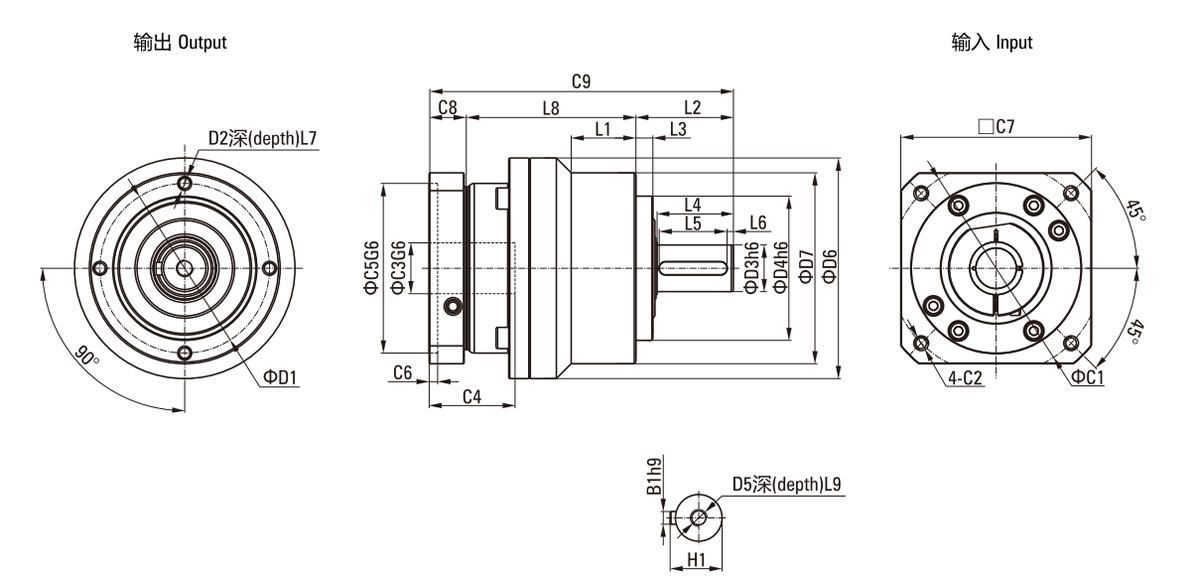

Dimension 050ZE 070ZE 090ZE 120ZE 155ZE 205ZE
D1 44 62 80 108 140 184
D2 M5×0.7P M5×0.8P M6×1P M8×1.25P M10×1.5P M12×1.75P
D3 12 16 22 32 40 55
D4 35 52 68 90 120 160
D5 M4×0.7P M5×0.8P M8×1.25P M12×1.75P M16×2P M20×2.5P
D6 53 70 104 130 162 205
D7 50 70 90 120 155 205
L1 31.5 36 50
L2 24.5 36 46 70 97 100
L3 4 6 8 17 15 15
L4 1 28 36 51 79 82
Specifications
Specifications
