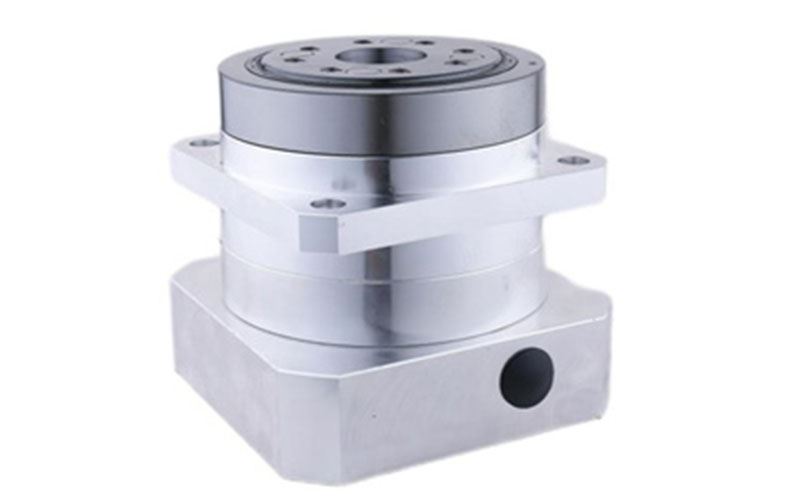

- ZPG Helical Gear Planetary Gearbox
| Specifications | Number of Stage | Gear Ratio | 20ZPG | 32ZPG | 50ZPG | |
| Rated Output Torque | N. M | 1 | 5 | 50 | 150 | 380 |
| 2 | 11 | 59 | 160 | 450 | ||
| 15 | 70 | 220 | 460 | |||
| 21 | 78 | 240 | 490 | |||
| 33 | 72 | 200 | 620 | |||
| 45 | 98 | 280 | 640 | |||
| Max. Instantaneous Torque | N. M | 1, 2 | 2 times the output torque | |||
| Recommended Input Speed | rpm | 1, 2 | 5～45 | 3000 | 3000 | 2000 |
| Max. Input Speed | rpm | 1, 2 | 5～45 | 6000 | 6000 | 4500 |
| Return Clearance | arcmin | 1 | 5 | ≤3 | ≤3 | ≤3 |
| 2 | 11～45 | ≤5 | ≤5 | ≤5 | ||
| Service Life | h | 1, 2 | 5～45 | 20000 | ||
| Weight | kg | 1 | 5 | 1.2 | 3.0 | 10 |
| 2 | 11～45 | 1. 5 | 3.7 | 12 | ||
| Working Temperature | ℃ | 1, 2 | 5～45 | - 10 ～ +90 | ||
| Lubrication | - | 1, 2 | 5～45 | Lifetime lubrication | ||
| IP Ratings | - | 1, 2 | 5～45 | IP65 | ||
