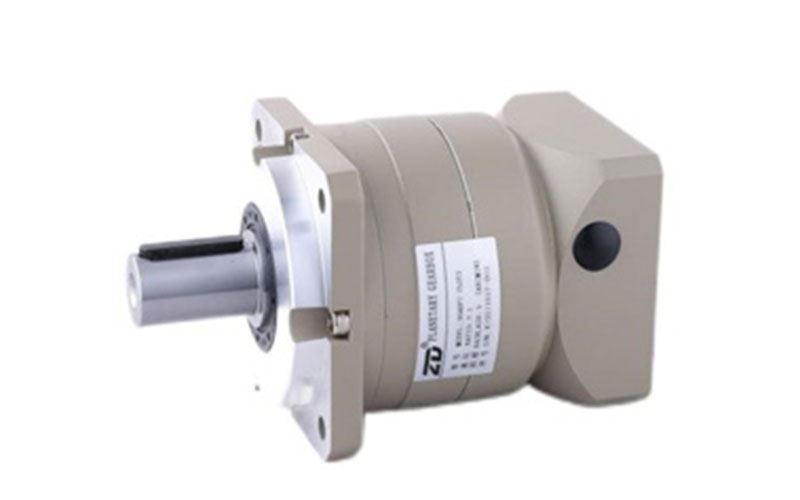

ZBF Helical Gear Planetary Gearbox

ZBF Helical Gear Planetary Gearbox

Application
  • Laser Cutting Machines
  • Glass Edge Grinding Machines
Request a Quote PDF Download
Specifications

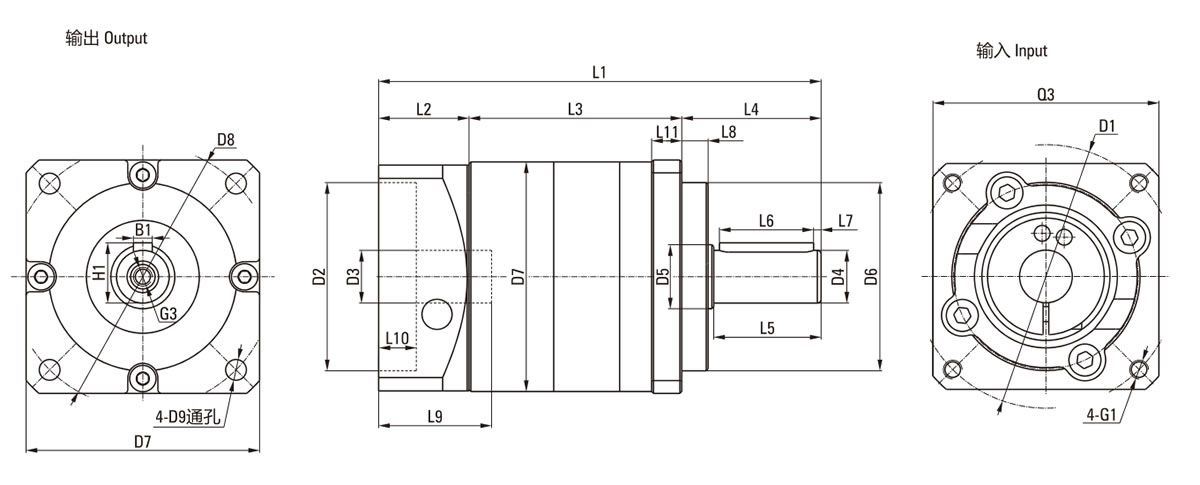

Unit: mm
Model   060 090 115 142 180 Gear Ratio Number of Stage
Rated Output Torque N.M 45 120 198 332 578 3 1
40 130 280 532 1040 4
50 150 320 650 1190 5
40 130 290 540 1090 7
35 110 250 490 990 8
30 90 220 440 890 10
45 120 198 332 578 15 2
40 130 280 532 1040 20
50 150 320 640 1190 25
40 130 290 540 1190 35
35 110 250 490 990 40
50 150 320 640 1190 50
45 140 300 590 1090 64
40 130 290 540 1090 70
35 110 250 490 990 80
30 90 220 440 890 100
Service Life h 20000
Instantaneous Emergency Stop Torque N.M 2 times the rated output torque
